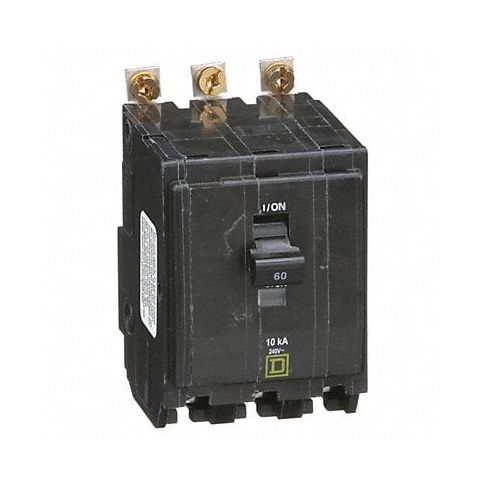

Circuit Breaker 60A Bolt On 120/240V 3P MPN:QOB360
SKU
226-CXG-1H898
Circuit Breaker 60A Bolt On 120/240V 3P
Introducing our high-performing Circuit Breaker 60A Bolt On 120/240V 3P from Square D - perfect for those looking to protect their electrical circuits from faults in low-level currents. These durable and stable circuit breakers are designed for easy installation, featuring a lug orientation that allows for straight-in wiring through bus bars, eliminating the need for cumbersome pigtail wires. Offering 60A amps with a Standard Circuit Breaker Type, this 3-pole device is ideal for use in NQOD and NQ panelboards or interiors. With a rugged construction that meets your industrial needs, invest in our Square D Circuit Breaker to ensure reliable protection and optimal performance in your electrical setup.
Top product features:
- Bolt-on installation for greater stability
- Lug orientation allows straight-in wiring through bus bars
- Interrupts currents when low-level faults are detected in the circuit
Top product applications:
- Use in industrial settings where stable and reliable protection from faults is essential
- Ideal for use in commercial installations, including offices and retail spaces
- Can be used in residential settings as long as the amperage requirement is met
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 60 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB360
- MPN: QOB360
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
