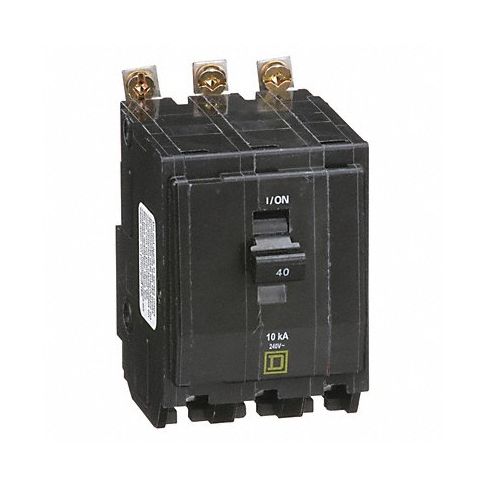

Circuit Breaker 40A Bolt On 120/240V 3P MPN:QOB340
Free Shipping
In Stock
Introducing the Circuit Breaker 40A Bolt On 120/240V 3P from Square D - your all-in-one solution for reliable power management in a wide range of commercial and residential applications. Designed with QOB series miniature circuit breakers, these units are ideal for use in NQOD and NQ panelboards or interiors to provide stable and robust protection against low-level faults in the circuit. Featuring a lug orientation that allows for straight-in wiring through bus bars, eliminating the need for pigtail wires, this makes organization of the load center easy and efficient. With their ability to interrupt currents safely and quickly, these breakers offer superior peace of mind for professionals and homeowners alike - making them an indispensable component of any electrical installation. Don't compromise on safety; choose the Circuit Breaker 40A Bolt On 120/240V 3P from Square D and enjoy the added assurance that comes with it.
Top product features:
- Bolt-on design for stability and durability in panelboards or interiors.
- Interrupts currents upon detection of low-level faults for added safety.
- Lug orientation allows straight-in wiring through bus bars for easy organization and pigtail-free installation.
Top product applications:
- Use in electrical panelboards for added stability and durability.
- Use as part of an electrical protection system to prevent overloads or short circuits.
- Use in commercial or residential settings where three-phase power is required.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 40 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB340
- MPN: QOB340
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
