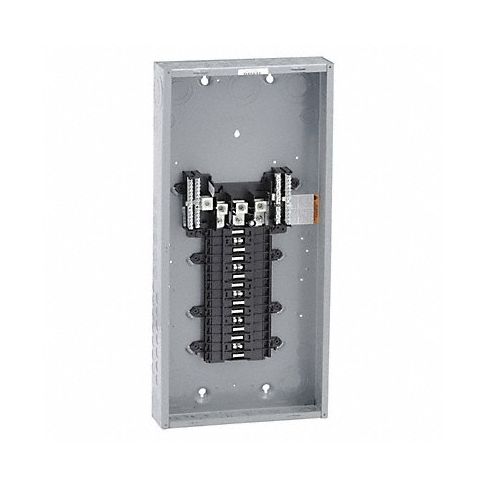

Load Center 200A Lug 3 Phase 30 Spaces MPN:QO330L200G

Discount: See in Cart
Free Shipping
In Stock
Brand: Square D
Part #: QO330L200G
UPC: 785901295501
SKU
226-CXG-1D407
$827.29
Load Center 200A Lug 3 Phase 30 Spaces

Introducing Square D main lug load centers! These exceptional devices are designed to distribute power downstream from main breakers and come in handy when all circuit slots in your main breaker load center are full or when a remote panel is needed. Boasting a capacity of 200 amps, these load centers use QO series circuit breakers to protect circuits against overcurrents. Whether you're dealing with residential, commercial or industrial applications, Square D load centers guarantee superior performance, safety, and reliability. Get yours today and start enjoying the ease of controlling power distribution in your premises!

Top product features:

  • Main lug load center distribution
  • Usage with QO series circuit breakers
  • 200-amp capacity

Top product applications:

  • Distribution of power to remote panels
  • Protection against overcurrents in residential, commercial or industrial settings
  • Use in situations where the main breaker load center has no available slots
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.

Technical Specifications

  • Item Load Center
  • Number of Spaces 30
  • Amps 200 A
  • Voltage 208Y/120/240V AC
  • Circuit Breaker Type QO
  • Included Enclosure Cover Order Separately
  • Main Circuit Breaker or Main Lug Main Lug
  • Max. No. of Tandem Breakers 0
  • Phase 3
  • Series QO
  • Height 29 27/32 in
  • Width 14 1/4 in
  • Depth 3 3/4 in
  • For Use With Square D QO Circuit Breakers
  • Bus Material Tin Plated Copper
  • Short Circuit Current Rating 65kA
  • Enclosure NEMA Rating 1
  • Recommended Flush Cover 1D435
  • Recommended Ground Bar Kit Included
  • Recommended Surface Cover 1D436
  • Color Gray
  • Enclosure Material Steel
  • Enclosure Surface Finish Enamel
  • Feed Location Top/Bottom
  • Max. Operating Temp. 104 Degrees F
  • Min. Operating Temp. 23 Degrees F
  • Special Features Mercury Free
  • Location Indoor
  • Standards RoHS Compliant, UL Listed

Manufacturer Details

  • Manufacturer: Square D
  • Condensed Mfg Number: QO330L200G
  • MPN: QO330L200G

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8538907080
  • GDS Category Name: Load Centers and Panelboards
  • GDS Family Name: Distribution
  • GDS Segment Name: Electrical
  • UNSPSC: 39121101
  • UNSPSC Class ID: 11
  • UNSPSC Commodity Name: Distribution and control centers and accessories
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Load centers
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B000LEO9FM
