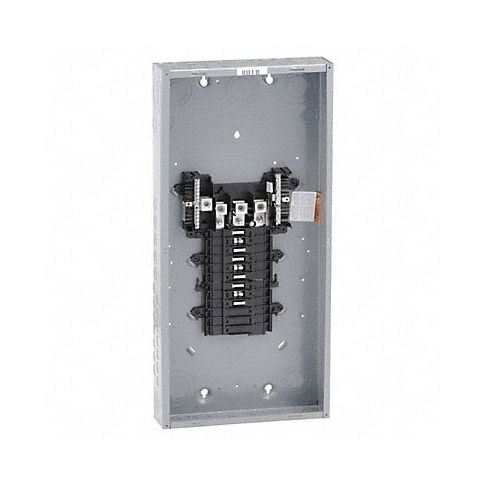

Load Center 200A Lug 3 Phase 18 Spaces MPN:QO318L200G
Free Shipping
In Stock
The Square D Load Center 200A Lug 3 Phase 18 Spaces is the ideal solution for those looking to expand their electrical systems beyond the limitations of traditional breaker load centers. These powerful main lug load centers can handle up to 200 amps, making them suitable for a variety of residential and commercial applications. With a generous 18 spaces, this product allows you to easily manage your circuits while also providing an attractive and durable solution that's made to last. Easy installation and compatibility with QO series circuit breakers make these load centers the perfect addition to any electrical system, no matter the scale or complexity. Upgrade your load center today and enjoy the convenience and control of Square D's premium product.
Top product features:
- Main lug load centers for 3 phase systems
- Provides additional circuit slots when needed
- Compatible with QO series circuit breakers
Top product applications:
- Use as additional circuits in 3 phase systems
- Ideal for use as main lugs at service equipment entry points
- Suitable for use as a remote panel
Technical Specifications
- Item Load Center
- Number of Spaces 18
- Amps 200 A
- Voltage 208Y/120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 0
- Phase 3
- Series QO
- Height 29 27/32 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 65kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover 1D435
- Recommended Ground Bar Kit Included
- Recommended Surface Cover 1D436
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO318L200G
- MPN: QO318L200G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109090
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
