Circuit Breaker 20A Plug In 120/240V 1P MPN:HOMT2020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D365

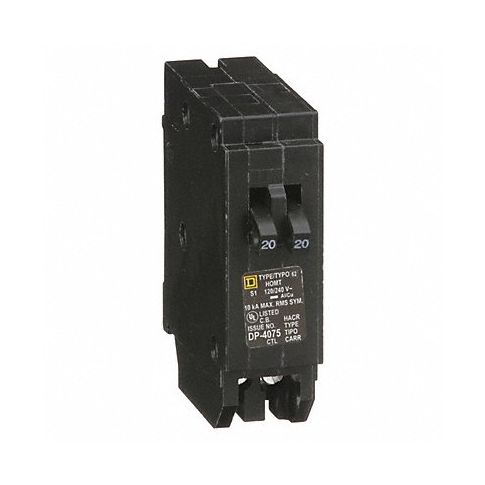

Circuit Breaker 20A Plug In 120/240V 1P
The Square D Circuit Breaker 20A Plug In 120/240V 1P is a reliable and cost-effective solution for home electrical needs. This easy-to-install breaker provides protection from low-level faults in circuits, ensuring the safety of electrical equipment. Its bus bar connection eliminates the need for pigtail wires and helps keep load centers organized. With a rating of 20 amps and an AC voltage of 120/240V, this breaker is perfect for protecting home appliances, lights, and electronics. Its tandem design offers added protection against overloads, making it ideal for use in homes with multiple electrical devices. Easy to find and install, the Square D Circuit Breaker provides peace of mind and convenience for homeowners.
Top product features:
- Easy installation with plug-in design
- Protection against low-level faults
- Bus bar connection for simplified wiring
Top product applications:
- Protection for home electrical systems
- Use in load centers for organized wiring
- Safe power supply to various household devices
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Tandem
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 1 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOMT2020
- MPN: HOMT2020
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
