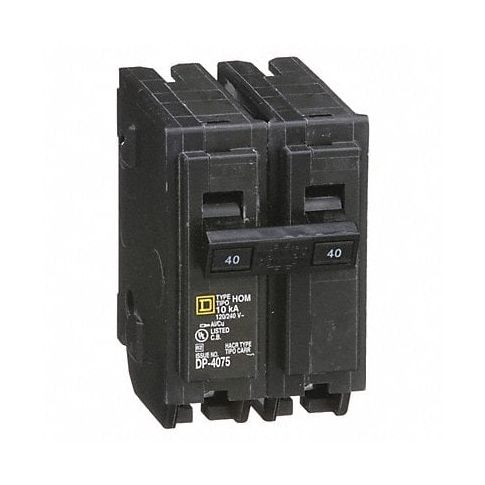

Circuit Breaker 40A Plug In 120/240V 2P MPN:HOM240
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D356
Circuit Breaker 40A Plug In 120/240V 2P
The Square D HOM series miniature circuit breakers are a smart addition to your load center for better protection against electrical hazards. With easy plug-in installation without DIN rail or bolts, these 40A, 2-pole, and 120/240V AC rated breakers save you time and effort during setup. Their ground fault circuit interrupter (GFCI) function ensures that the current is discontinued whenever a low-level fault is detected in the circuit. The bus bar connection eliminates the need for pigtail wires, making the load center more organized. Ideal for residential and light commercial applications, these breakers offer optimal protection to devices plugged into them. Get your Square D HOM series miniature circuit breaker today and experience seamless electrical safety.
Top product features:
- Easy Installation: These circuit breakers can be installed easily and quickly without requiring DIN rail or bolts, making them perfect for DIY projects or any person without specialized electrical training.
- GFCI Protection: The built-in ground fault circuit interrupter (GFCI) technology provides an extra layer of safety by preventing electrical hazards and shocks that might happen due to a low-level fault in the circuit.
- Organized Load Center: By connecting to the power supply through bus bars, these breakers help to organize your load center by eliminating the need for messy pigtail wires.
Top product applications:
- Residential electrical panels: These circuit breakers are perfect for residential load centers that require easy installation without the need for DIN rails or bolts, and they offer GFCI protection to prevent electrical hazards in the home.
- Mobile offices or temporary structures: These plug-in breakers can be used in mobile offices or temporary structures where there is a need for an organized load center without the need for complex wiring setups.
- Light commercial use: The 40A capacity and GFCI protection make these circuit breakers ideal for light commercial usage, such as small offices, retail spaces, or restaurants, offering added safety against electrical hazards.
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 40 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM240
- MPN: HOM240
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
