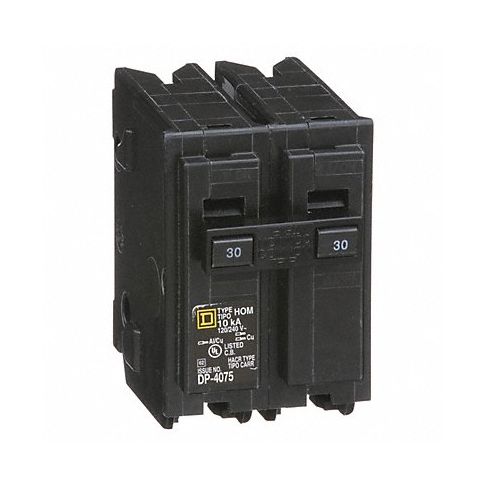

Circuit Breaker 30A Plug In 120/240V 2P MPN:HOM230
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D354
Circuit Breaker 30A Plug In 120/240V 2P
Introducing the Square D HOM30A circuit breaker - the perfect solution for reliable electrical installations! This plug-in miniature circuit breaker operates at both 120V and 240V AC voltages, making it suitable for a wide range of residential and commercial applications. Its innovative design eliminates the need for DIN rail or bolts, making installation easier than ever. The HOM30A interrupts currents when low-level faults are detected in the circuit, providing optimal safety and protection. Additionally, it connects to power supply through bus bars, which streamlines wiring and enhances organization. The Square D HOM30A circuit breaker is an ideal choice for anyone seeking dependable and easy-to-install electrical equipment.
Top product features:
- Plug-in design: simplifies installation and eliminates the need for DIN rails or bolts
- Interrupts currents at low-level faults: provides enhanced safety and protection
- Connects to power supply through bus bars: streamlines wiring and organizes load center
Top product applications:
- Residential electrical system protection for appliances and electronics
- Protection in commercial settings for equipment and devices
- Temporary power supply for small construction sites or outdoor events
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM230
- MPN: HOM230
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
