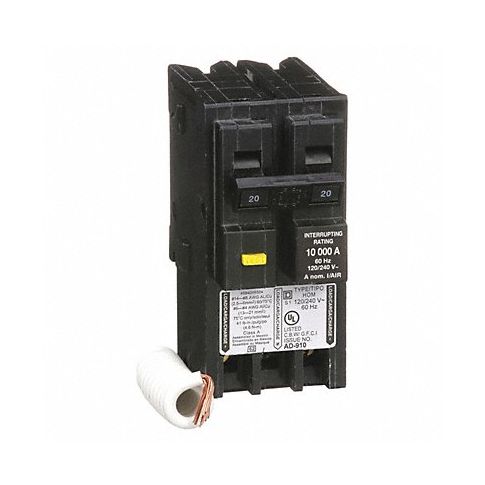

Circuit Breaker 20A Plug In 120/240V 2P MPN:HOM220GFI
Free Shipping
In Stock
Introducing Square D's Circuit Breaker 20A Plug In 120/240V 2P - the perfect solution for controlling power in your home or office. These miniature circuit breakers are designed to easily plug into place in Homeline load centers without requiring any additional hardware, making them an efficient and time-saving choice for installation. The built-in Ground Fault Circuit Interrupter detects low-level faults and interrupts the current, keeping your electrical system safe from damage. Ideal for a range of applications, including lighting, appliances, tools, and electronics, these circuit breakers provide a simple way to manage power distribution throughout your space. With 20 Amp capacity and an easy-to-install design, Square D's Circuit Breaker 20A Plug In 120/240V 2P is a must-have for any home or office.
Top product features:
- Plug-in installation: Easy and quick to install in Homeline load centers without DIN rail or bolts
- Ground Fault Circuit Interrupter: Detects low-level faults and interrupts current, providing electrical safety
- Capacity: 20 Amp capacity for handling lighting, appliances, tools, and electronics
Top product applications:
- Home use: Controlling power distribution in lighting fixtures, appliances, tools, and electronics
- Office use: Managing electricity flow for computers, printers, copiers, and other office equipment
- Temporary/outdoor use: Providing power to construction sites, job sites, festivals, or events with mobile temporary structures
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA)
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM220GFI
- MPN: HOM220GFI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
