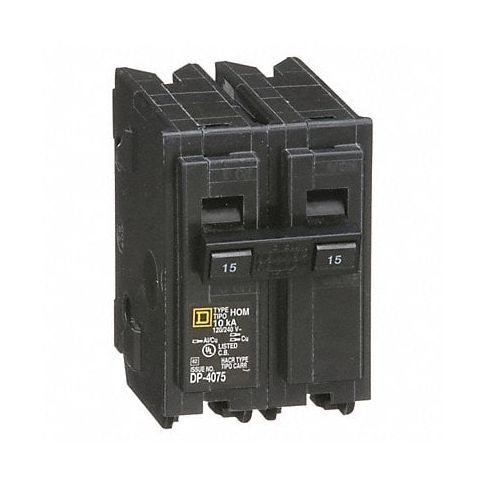

Circuit Breaker 15A Plug In 120/240V 2P MPN:HOM215
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D350
Circuit Breaker 15A Plug In 120/240V 2P
Introducing the Square D HOM Series Circuit Breaker - your simple solution for reliable electrical protection. Plug-in and easy to install, these miniature circuit breakers protect against low-level faults with ease. Ideal for use in Homeline load centers, their convenient design eliminates the need for cumbersome DIN rail or bolts, while bus bars make wiring a breeze. With an amperage rating of 15A and compatibility with both 120V and 240V AC voltages, this circuit breaker is perfect for a wide range of applications, from residential to light commercial settings. Make the smart choice for your electrical needs with Square D's HOM Series Circuit Breaker - safety made simple!
Top product features:
- Plug-in installation
- Protects against low-level faults
- Compatible with Homeline load centers
Top product applications:
- Protect electrical systems in homes and small businesses
- Provide additional circuit protection in high-demand situations
- Ensure safe operation of appliances and equipment
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM215
- MPN: HOM215
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
