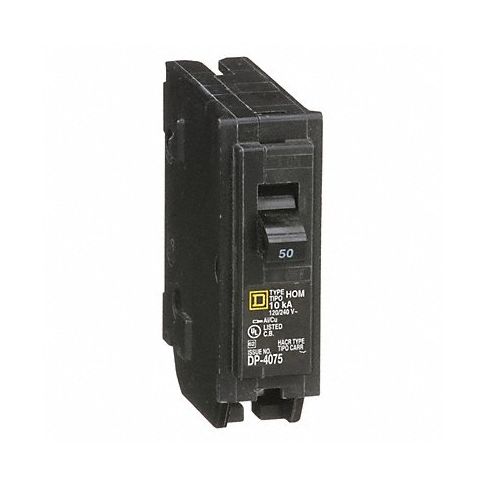

Circuit Breaker 50A Plug In 120V 1P MPN:HOM150
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D346
Circuit Breaker 50A Plug In 120V 1P
Introducing Square D's HOM series 50A plug-in miniature circuit breaker, designed specifically for Homeline load centers. This breaker offers easy installation without the need for DIN rail or bolts - making it a breeze to install in comparison to other options on the market. With its ability to detect low-level faults and interrupt currents, this breaker provides added protection to your electrical system. Connecting directly to bus bars eliminates the need for pigtail wires, keeping your load center organized and efficient. The 120V AC rating makes it suitable for a variety of applications. Choose Square D's HOM series circuit breaker for simple installation and enhanced safety.
Top product features:
- Easy installation without DIN rail or bolts
- Interrupts currents upon detection of low-level faults
- Direct connection to bus bars
Top product applications:
- Use in Homeline load centers for easy installation without DIN rail or bolts
- Protection against low-level faults for added safety and security
- Direct connection to bus bars for simplified wiring and clutter-free organization
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 120V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 1 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM150
- MPN: HOM150
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
