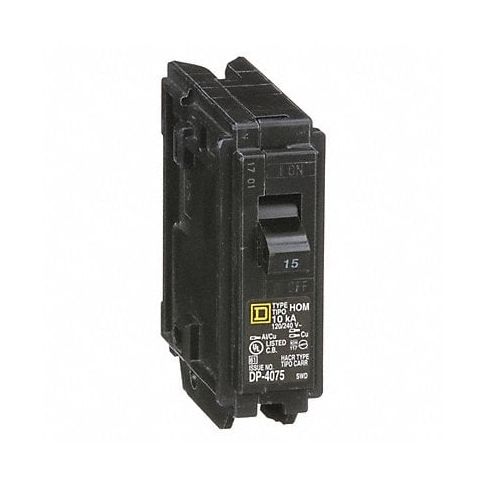

Circuit Breaker 15A Plug In 120V 1P MPN:HOM115
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D340
Circuit Breaker 15A Plug In 120V 1P
Introducing the Square D HOM series miniature circuit breakers for camping enthusiasts! These powerful 15A circuit breakers plug into Homeline load centers for easy installation in a snap. They are designed to interrupt currents when low-level faults are detected, providing optimal protection against electrical hazards. Equipped with a simple and sleek design, these circuit breakers connect to the power supply through bus bars, eliminating the need for pigtail wires and simplifying your load center setup. Perfect for light-duty camping equipment, the Square D HOM series miniature circuit breaker is a must-have accessory to keep you safe and protected while enjoying the great outdoors.
Top product features:
- Plugs into Homeline load centers for easy installation
- Interrupts currents when low-level faults are detected
- Connects to power supply through bus bars to eliminate need for pigtail wires
Top product applications:
- Camping equipment requiring 120V AC power
- Small household appliances that require a 15A circuit breaker
- Portable power banks for charging devices on-the-go
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 120V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 1 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, Switching Duty rated, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM115
- MPN: HOM115
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
