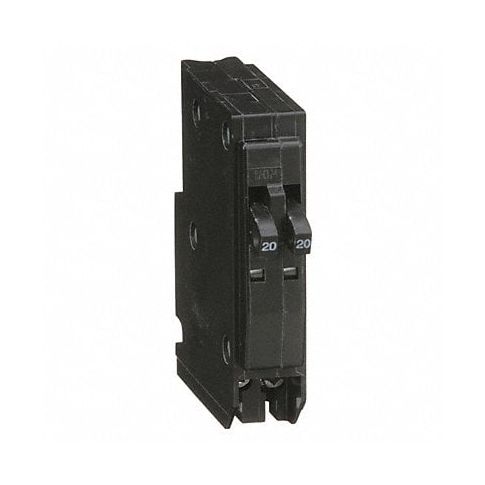

Circuit Breaker 20A Plug In 120/240V 1P MPN:QOT2020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D337
Circuit Breaker 20A Plug In 120/240V 1P
Introducing Square D's QOT Series Tandem Circuit Breakers, the ultimate solution for smart and efficient electrical management in commercial or residential spaces. These miniature circuit breakers are perfect for protecting circuits from overload and short-circuit conditions while providing optimal space efficiency with their tandem design. With an AC voltage rating of 120/240V, they can handle a range of electrical loads while safely monitoring the current flow. The simple plug-in installation eliminates the need for cumbersome bolts or DIN rails, saving time and effort during installation. Use these circuit breakers in NQOD panelboards and QO load centers to maximize your electrical system's performance and safety. Experience the difference with Square D's QOT Tandem Circuit Breakers - The smarter way to protect and manage your circuits.
Top product features:
- Simple plug-in installation eliminates the need for cumbersome bolts or DIN rails No longer spend time and effort in installing bolt-on and unit-mount breakers with Square D's QOT Tandem Circuit Breakers. The easy-to-install plug-in feature saves you time and frustration while making sure your installation is done quickly and correctly.
- Tandem design allows two separate circuits in one slot Get the maximum use out of every space with Square D's QOT Tandem Circuit Breakers. Their innovative tandem design provides two breakers in one regular-sized breaker body, letting you have twice the protection and efficiency in a single circuit breaker slot.
- Interrupts currents when low-level faults are detected Square D's QOT Tandem Circuit Breakers come with advanced features to ensure optimal safety and performance for your electrical systems. Their ability to detect and interrupt even low-level faults gives you an added layer of protection against short circuits or overloads, keeping your equipment and occupants safe at all times.
Top product applications:
- Electrical panel upgrades and extensions If you are in the process of upgrading or extending your electrical panel, Square D's QOT Tandem Circuit Breakers offer an efficient solution to minimize space usage while ensuring optimal protection for each circuit. Their tandem design provides two circuits in one slot while their advanced fault detection capabilities provide a layer of safety for your equipment and occupants.
- Residential or commercial remodeling projects Are you working on residential or commercial remodeling projects that require additional electrical outlets or circuits? Square D's QOT Tandem Circuit Breakers give you the flexibility to install more circuits in less space while maintaining maximum safety standards. You can quickly and easily install these breakers without having to deal with cumbersome bolts or DIN rails, saving time and effort during installation.
- Electrical maintenance in commercial buildings In commercial spaces like offices, shopping centers, or schools, electrical circuits go through constant use, making it essential to have a layer of protection against overloads or short-circuits. Square D's QOT Tandem Circuit Breakers provide just that, as they come with advanced features such as interrupting currents even at low fault levels. Additionally, their easy installation and space-efficient design make them the ideal solution for maintaining electrical systems in commercial buildings.
These QOT series miniature circuit breakers plug into place in NQOD panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. These breakers are tandem, so they have two smaller breakers built into one regular-sized breaker body, providing two separate circuits in the space of one slot. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Tandem
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOT
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.22 in
- Width 0.75 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOT2020
- MPN: QOT2020
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
