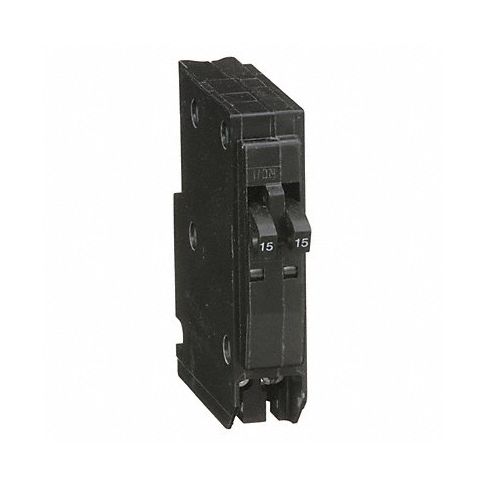

Circuit Breaker 15A Plug In 120/240V 1P MPN:QOT1515
Free Shipping
In Stock
The Square D QOT series circuit breakers are miniature in size but mighty in their ability to protect electrical circuits from low-level faults. These tandem circuit breakers come in a convenient plug-in design that connects directly to bus bars without the need for DIN rails or bolts. Each breaker has two smaller circuits built into one regular-sized body, making it ideal for use in space-constrained panels and load centers. By interrupting currents at the first sign of a fault, these breakers prevent more significant damage from occurring due to overloads or short circuits. Their ability to detect and react quickly makes them perfect for various applications, including commercial buildings, residential homes, and industrial facilities. Their compact design makes them easy to install and integrate seamlessly into any electrical system without taking up valuable space. Experience the peace of mind that comes from knowing your electrical circuits are protected with Square D QOT series circuit breakers.
Top product features:
- Compact design saves space in panelboards and load centers
- Tandem breakers provides two separate circuits in one slot
- Low-level fault detection prevents more significant damage to electrical systems
Top product applications:
- Home electrical systems protect wires and appliances from damage due to overloads or short circuits
- Commercial buildings provide power and protection for various electrical equipment in office spaces, retail stores, etc.
- Industrial settings safeguard machinery and tools on the factory floor by preventing electrical hazards and keeping operations running smoothly
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Tandem
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOT
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.22 in
- Width 0.75 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOT1515
- MPN: QOT1515
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC Category: Distribution
