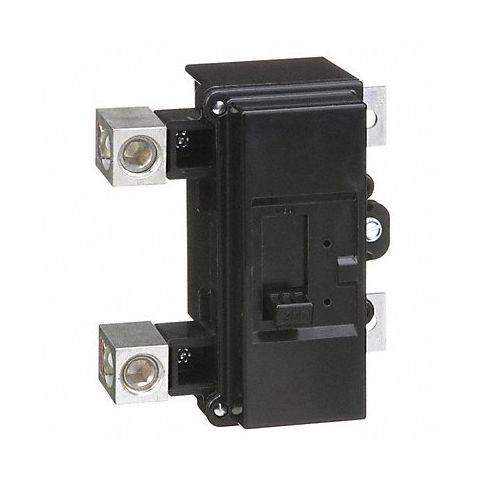

Circuit Breaker 200A Bolt On 120/240V 2P MPN:QOM2200VH
Free Shipping
In Stock
Introducing Square D's QOM series main circuit breakers - designed to offer exceptional overcurrent and short circuit protection for QO load centers with convertible mains. These top-quality breakers feature a lug orientation that allows straight-in wiring through bus bars, eliminating the need for pigtail wires and helping organize your load center. Their horizontal handle provides easy access for either top or bottom feed applications. With a capacity of 200 Amps, these breakers are ideal for homes or offices looking to safeguard against electrical damage from overcurrents and short circuits. The vertical handle and compact design make them an excellent choice for tight spaces or limited installation areas. Trust Square D's QOM series main circuit breakers to provide you with reliable protection for all your electrical needs.
Top product features:
- Lug orientation for straight-in wiring through bus bars
- Horizontal handle for top or bottom feed applications
- 200 Amp capacity
Top product applications:
- Protection for QO load centers in residential or commercial settings
- Installation in new or existing electrical systems
- Use as part of a complete electrical wiring and distribution system
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 200 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Main Breaker
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOM
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Homeline Load Center, QO Load Center
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.6 in
- Width 3.6 in
- Depth 5.07 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOM2200VH
- MPN: QOM2200VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
