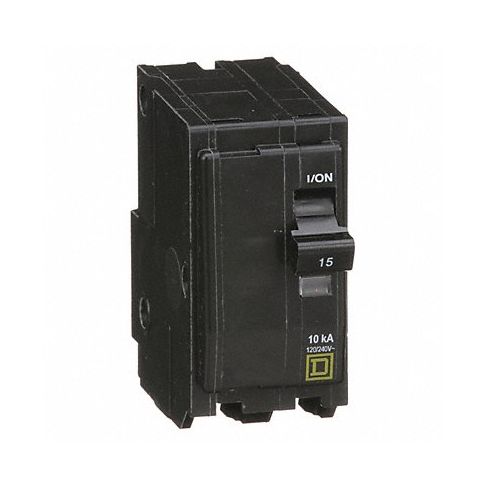

Circuit Breaker 15A Plug In 120/240V 2P MPN:QO215
Free Shipping
In Stock
The Square D Circuit Breaker is perfect for controlling light loads in commercial environments, like lights and small motors. With an easy-to-install plug-in design, it eliminates the need for bolt-on installation. It offers up to 15A of capacity and a maximum voltage rating of 120/240V AC. The standard circuit breaker type makes it suitable for controlling both indoor and outdoor applications. Its dual-pole design enables simultaneous control of two separate circuits, while its fast tripping response protects sensitive electronics from damage caused by overloads and short circuits. Plus, its rugged construction ensures long-lasting durability in harsh industrial environments. Upgrade to the Square D Circuit Breaker for reliable power management today!
Top product features:
- Easy Plug-in Installation: No need for bolt-on installation saves time and effort
- Dual-pole design for simultaneous control of two separate circuits
- Fast tripping response protects sensitive electronics from damage caused by overloads and short circuits
Top product applications:
- Controlling light loads in commercial environments such as offices, schools, and retail spaces
- Protecting electronics and appliances in residential settings
- Use as secondary protection for branch circuits or equipment with motor loads
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.12 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO215
- MPN: QO215
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC Category: Distribution
