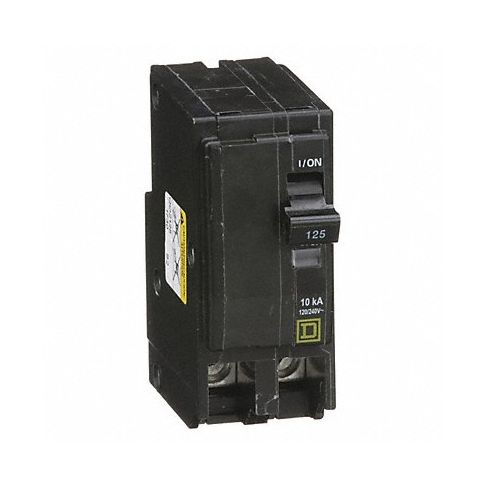

Circuit Breaker 125A Plug In 120/240V 2P MPN:QO2125
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-1d253
Circuit Breaker 125A Plug In 120/240V 2P
Square D's QO series miniature circuit breaker offers unbeatable safety, performance, and convenience for a range of residential and commercial uses. With 125-amp capacity, this powerful breaker is suitable for handling large electrical loads in your home or office, protecting against overloads and short circuits to prevent damage and electrical hazards. Easy to install and connect to the power supply, the QO circuit breaker makes a smart choice for any space that requires reliable, easy-to-manage electrical protection.
Top product features:
- Easy Installation: Plug-in circuit breakers make it easier to install without the need for DIN rail or bolts.
- Interrupts currents during low-level faults: This safety feature helps prevent damage and electrical hazards.
- Two poles for more power: With a 125-amp capacity, this circuit breaker is suitable for handling larger loads.
Top product applications:
- Residential use: The QO circuit breaker is suitable for protecting home electrical circuits against overloads and short-circuit faults.
- Commercial use: It can be used in small businesses, offices, or other commercial spaces to protect various types of loads and equipment from power fluctuations or overloads.
- Safety precaution: The circuit breaker helps prevent electrical hazards like shocks, fires, and damage caused by electrical overloads or short-circuits in various settings.
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 125 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO2125
- MPN: QO2125
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
