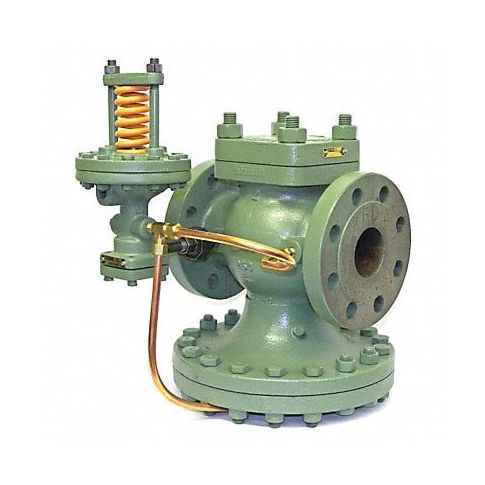

Pressure Regulator 10/100 psi 19-3/4in L MPN:E-C1N3A1B1AM1
Pressure Regulator 10/100 psi 19-3/4in L
Introducing the SPENCE Pressure Regulator - your key to efficient steam distribution and control in district heating systems and steam plants. This robust, cast-iron regulator is designed for single point or multiple use applications, offering single-stage, 2-stage, and parallel reductions options. Its rugged design ensures long-lasting durability and reliability, while its tapped pilot mount allows easy installation on either side of the regulator. With a maximum working pressure of 10/100 psi and a 19.75-inch length, this product is ideal for managing steam pressures in various industrial settings. Upgrade your steam control system with SPENCE's trusted Pressure Regulator - designed for precision, efficiency, and safety.
Top product features:
- Robust, cast-iron construction
- Tapped pilot mount for easy installation
- Single-stage, 2-stage, and parallel reductions options
Top product applications:
- Steam distribution in district heating systems
- Steam pressure control in steam plants
- Multiple industrial and commercial steam applications
Rugged, cast-iron SPENCE pressure regulator is designed for use in steam distribution and pressure control in district heating systems and steam plants. Suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. Model is tapped to allow pilot mounting on either side of regulator.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 6 in
- Outlet Size 6 in
- Length 19 3/4 in
- Height 24 1/2 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 10 to 100 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 250, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1N3A1B1AM1
- MPN: E-C1N3A1B1AM1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
