Pressure Regulator 3 to 20 psi 14-1/2inH MPN:E-C1J3A1B1AH1
Pressure Regulator 3 to 20 psi 14-1/2inH
Featuring precise pressure control, this high-quality pressure regulator maintains consistent flow rate while reducing fluctuations for consistent performance ideal for various industrial applications requiring accurate regulation. Easy to install, the stainless steel material and solid brass construction ensures durability & reliability with its 3 to 20 psi working pressure range, making it a perfect tool in applications ranging from plumbing systems to water treatment facilities promising precision and long-lasting service.

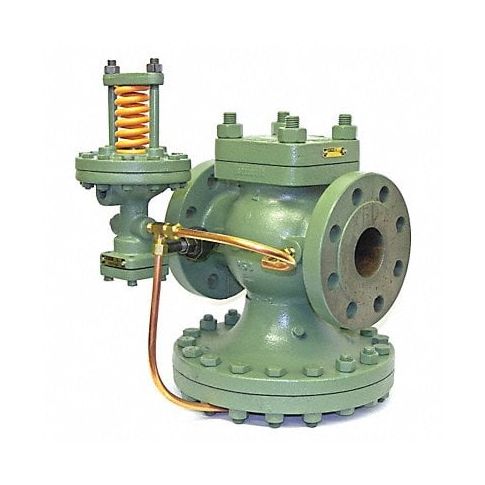

Rugged, cast-iron SPENCE pressure regulator is designed for use in steam distribution and pressure control in district heating systems and steam plants. Suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. Model is tapped to allow pilot mounting on either side of regulator.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 2 1/2 in
- Outlet Size 2 1/2 in
- Length 11 in
- Height 14 1/2 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 3 to 20 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 250, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1J3A1B1AH1
- MPN: E-C1J3A1B1AH1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Pressure and Temperature Control Valves
