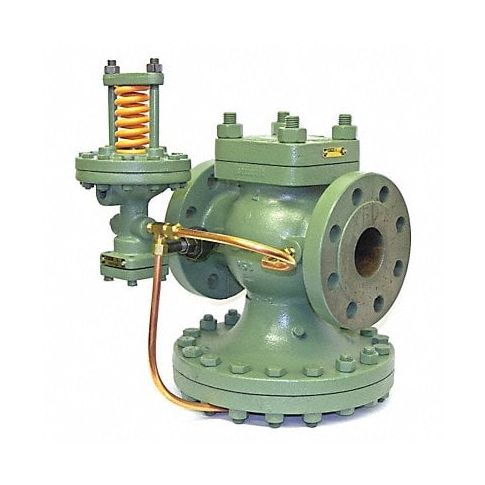

Pressure Regulator 10/100 psi 24-1/2in H MPN:E-C1N1A1B1AM1
Pressure regulator with a rating of 10/100 psi provides consistent pressure control at an adjustable rate for use in various plumbing applications. Its robust metal construction promotes longevity, while its compact size and lightweight nature facilitates portability, allowing users to effortlessly move around within the plumbing setting as needed. Additionally, its stainless steel valve provides protection against corrosion, ensuring the regulator performs optimally over an extended period. This pressure regulator meets NSF standards and boasts a durable rubber construction for additional assurance that it's built to withstand the harsh plumbing environment, making it an ideal choice for those working in both commercial or residential settings where precision in pressure control is essential.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 6 in
- Outlet Size 6 in
- Length 19 3/4 in
- Height 24 1/2 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 10 to 100 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 125, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1N1A1B1AM1
- MPN: E-C1N1A1B1AM1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
