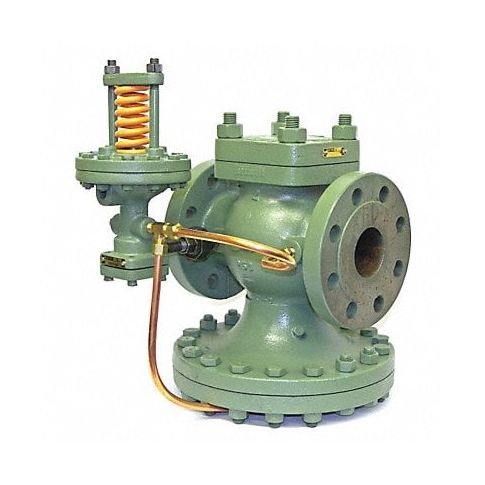

Pressure Regulator 5 to 50 psi 24-1/2inH MPN:E-C1N1A1B1AK1
This pressure regulator is suitable for gas control applications with its adjustable set point of 5 to 50 PSI making it adaptable within numerous industries such as chemical, pharmaceutical and petroleum sectors. It provides steady pressure reduction on high-pressure gases to a lower regulatable outlet pressure, while maintaining efficiency in process control hence reducing costs related to fluctuations resulting in wastage or loss of production, thus its effectiveness is seen in research & development processes within scientific laboratories. Its stainless steel construction ensures longevity and corrosion resistance when working with corrosive gases while the large adjustment handle enables easy use, even while wearing gloves or with less visibility thus making it applicable across various industries.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 6 in
- Outlet Size 6 in
- Length 19 3/4 in
- Height 24 1/2 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 5 to 50 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 125, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1N1A1B1AK1
- MPN: E-C1N1A1B1AK1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
