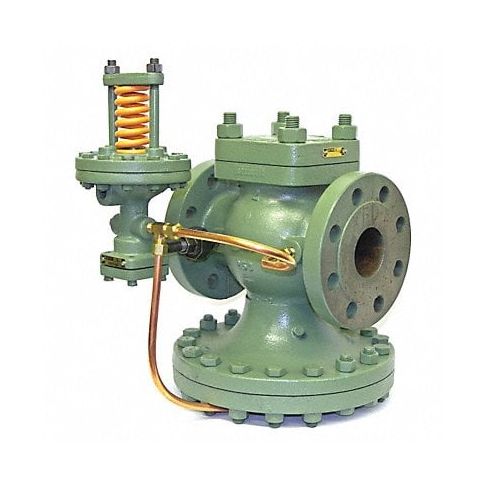

Pressure Regulator 3 to 20 psi 24-1/2inH MPN:E-C1N1A1B1AH1

Rugged, cast-iron SPENCE pressure regulator is designed for use in steam distribution and pressure control in district heating systems and steam plants. Suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. Model is tapped to allow pilot mounting on either side of regulator.

Technical Specifications

• Item Pressure Regulator
• Series ED
• Body Material Cast Iron
• Inlet Size 6 in
• Outlet Size 6 in
• Length 19 3/4 in
• Height 24 1/2 in
• Application Steam, District Heating Systems
• Connection Type Flanged
• Pressure Adjustment Range 3 to 20 psi
• Gauge Port Size 1/4 in
• Seal Material EPDM, NBR
• Max. Temp. 450 Degrees F
• Max. Pressure 250 psi
• Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 125, FCI 70-3 Class VI Shutoff
• Includes Pressure Pilot, Single Seat Main Valve

Manufacturer Details

• Manufacturer: Spence
• Condensed Mfg Number: EC1N1A1B1AH1
• MPN: E-C1N1A1B1AH1

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8481809015
• GDS Category Name: Pressure Regulators
• GDS Family Name: Pressure and Temperature Control Valves
• GDS Segment Name: Plumbing
• UNSPSC: 41112404
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Pressure regulator
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
