Pressure Regulator 20 to 150 psi 16 in H MPN:E-C1K1A1B1AN1
Pressure Regulator 20 to 150 psi 16 in H

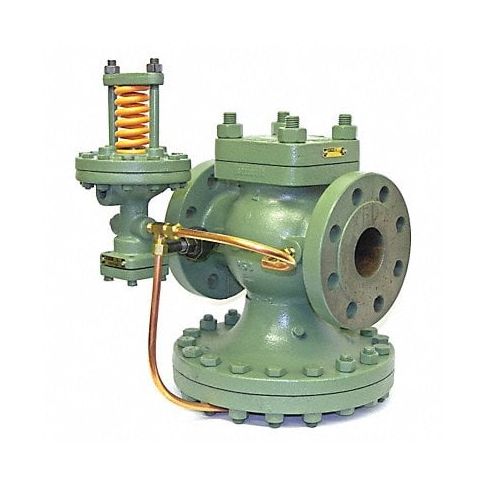

Experience superior pressure control with our SPENCE Pressure Regulator - perfect for steam distribution and pressure control in district heating systems and steam plants. This robust cast-iron regulator is suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. The versatile design allows pilot mounting on either side of the regulator, making it ideal for a variety of settings. Its rugged construction ensures durability and long-lasting performance, while its compact size makes it easy to install and maintain. With the SPENCE Pressure Regulator, you can trust that your system will operate efficiently and effectively.
Top product features:
- Versatile design
- Rugged construction
- Compact size
Top product applications:
- District heating systems
- Steam plants
- Single point or multiple use applications in steam distribution and pressure control
Rugged, cast-iron SPENCE pressure regulator is designed for use in steam distribution and pressure control in district heating systems and steam plants. Suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. Model is tapped to allow pilot mounting on either side of regulator.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 3 in
- Outlet Size 3 in
- Length 11 3/4 in
- Height 16 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 20 to 150 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 125, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1K1A1B1AN1
- MPN: E-C1K1A1B1AN1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
Category: Pressure and Temperature Control Valves
