Pressure Regulator 3 to 20 psi 16 in H MPN:E-C1K1A1B1AH1
Pressure Regulator 3 to 20 psi 16 in H
The reliable pressure regulator ensures controlled output in industries such as automotive repair, hydraulics or pneumatics, by reducing input pressures between 3 to 20 psi while providing an outlet of 16 inches long thread size. Designed using top-notch metal construction for increased durability during demanding tasks without compromising performance in a variety of environments under Pressure and Temperature Control Valves category. The included fitting connections are ideal for making quick connections or disconnections while being corrosion-resistant, suitable for various industries like mechanical workshops or factories that require regular pressure regulation for equipment operation.

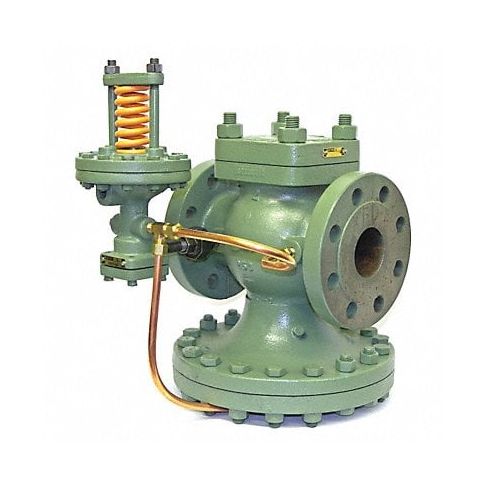

Rugged, cast-iron SPENCE pressure regulator is designed for use in steam distribution and pressure control in district heating systems and steam plants. Suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. Model is tapped to allow pilot mounting on either side of regulator.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 3 in
- Outlet Size 3 in
- Length 11 3/4 in
- Height 16 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 3 to 20 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 125, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1K1A1B1AH1
- MPN: E-C1K1A1B1AH1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:42am UTC
Category: Pressure and Temperature Control Valves
