Pressure Regulator 3 to 20 psi 11 in L MPN:E-C1J1A1B1AH1
Pressure Regulator 3 to 20 psi 11 in L
This pressure regulator provides reliable and precise control of water pressure between 3-20psi range for various cleaning equipment, tools or spray guns ensuring efficient cleaning processes without damage to the nozzle. Made from durable brass construction and rust-free, its stainless steel spring maintains optimal performance with ease. With its compact size of only 11 inch length and lightweight nature, this pressure regulator is conveniently portable allowing users to easily move between applications, ideal for commercial or residential cleaning activities reducing water wastage or damages caused by high-pressure water flow.

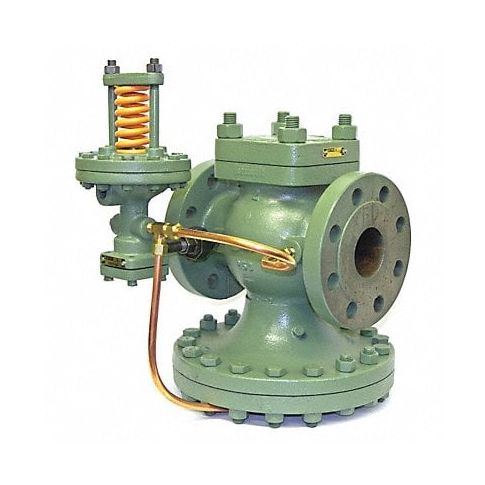

Rugged, cast-iron SPENCE pressure regulator is designed for use in steam distribution and pressure control in district heating systems and steam plants. Suitable for single point or multiple use applications and can be used in single-stage, 2-stage, and parallel reductions. Model is tapped to allow pilot mounting on either side of regulator.
Technical Specifications
- Item Pressure Regulator
- Series ED
- Body Material Cast Iron
- Inlet Size 2 1/2 in
- Outlet Size 2 1/2 in
- Length 11 in
- Height 14 1/2 in
- Application Steam, District Heating Systems
- Connection Type Flanged
- Pressure Adjustment Range 3 to 20 psi
- Gauge Port Size 1/4 in
- Seal Material EPDM, NBR
- Max. Temp. 450 Degrees F
- Max. Pressure 250 psi
- Standards ANSI/FCI 70-2 Class IV Shutoff, ASME/ANSI B16.1 Class 125, FCI 70-3 Class VI Shutoff
- Includes Pressure Pilot, Single Seat Main Valve
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: EC1J1A1B1AH1
- MPN: E-C1J1A1B1AH1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Pressure Regulators
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 41112404
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Pressure regulator
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
Category: Pressure and Temperature Control Valves
