Rev. Acting Temp Reg. 1-1/2 In 30 psi MPN:2020TG-GQD
Rev. Acting Temp Reg. 1-1/2 In 30 psi
Rev. acting temperature regulator is an essential component for precise fluid control across multiple industries like HVAC systems, oil field equipment or laboratories; designed to provide stable operation under varying temperatures using adjustable settings to ensure minimal temperature fluctuations; suited to control liquids at 30psi with a diameter of 1-1/2.

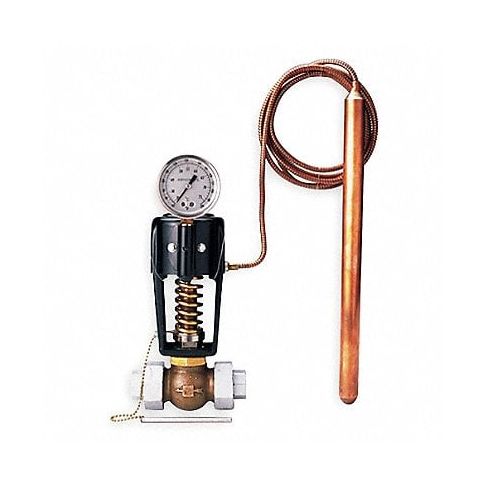

This Spence Engineering® self-operated, reverse-acting temperature regulator helps control the temperature of water, steam, or other liquid systems without electricity. This 2-way regulator is normally closed and used for cooling applications. Model features a thermal system assembly with gauge, 8" bronze capillary. 1" NPT male union bushing and galvanized FNPT union end connections. The adjusting screw and calibration scale allow easy setting. Regulator is suitable for heat exchangers, kettles, building heat, bottle-washing machinery, plating tanks, heating ducts, cooking vats, and parts washers.
Technical Specifications
- Item Reverse Acting Temperature Regulator
- Connection Type FNPT
- Pipe Size 1 1/2 in
- Max. Pressure 30 psi
- Sensor Length 19 in
- Overall Height 15 11/16 in
- Overall Width 8 15/16 in
- Body Material Bronze
- Spring Material Steel
- Temp. Range 45 Degrees to 140 Degrees F
- Sensor Dia. 1 in
- Cord Length 8 ft
Manufacturer Details
- Manufacturer: Spence
- Condensed Mfg Number: 2020TGGQD
- MPN: 2020TG-GQD
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032100090
- GDS Category Name: Temperature Regulator Valves
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141606
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Relief valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 11:49am UTC
Category: Pressure and Temperature Control Valves
