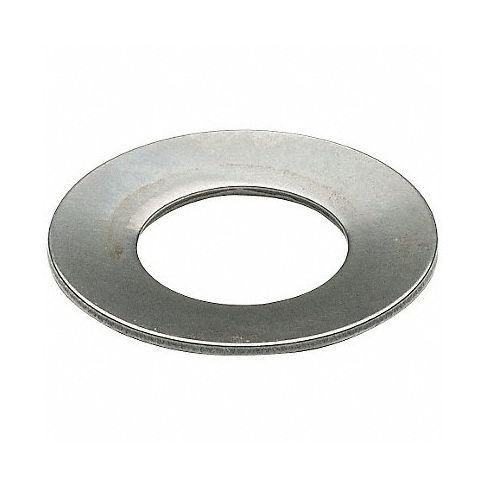

Disc Spring 1.688 Chrome Belleville PK5 MPN:B4750437
Disc Spring 1.688 Chrome Belleville PK5
The disc spring is a versatile component that offers superior performance in diverse applications. Its unique bellows-type design enables it to handle compressive loads with ease, making it suitable for uses where strong retaining forces are required. Manufactured from high-quality chrome material - these springs boast exceptional corrosion resistance ensuring longevity even under harsh conditions.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Springs including Spec item #B4750437.
Technical Specifications
- Item Disc Spring
- Type Belleville Spring Washer
- Material Chrome
- Finish Plain
- Min. Inside Dia. 1.688 in
- Max. Outside Dia. 4.75 in
- Thickness 0.437 in
- Overall Height 0.497 in
- For Hole Size 4.75
- For Rod Size 1.688
- Load @ Deflection (Lbs.) 26441
- Deflection @ Load 0.048 in
- Calculated Load @ Flat (Lbs.) 38012
Manufacturer Details
- Manufacturer: Spec
- Condensed Mfg Number: B4750437
- MPN: B4750437
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318210090
- GDS Category Name: Disc Springs
- GDS Family Name: Springs
- GDS Segment Name: Hardware
- UNSPSC: 31161906
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Springs
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Disk springs
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:33am UTC
Category: Springs
