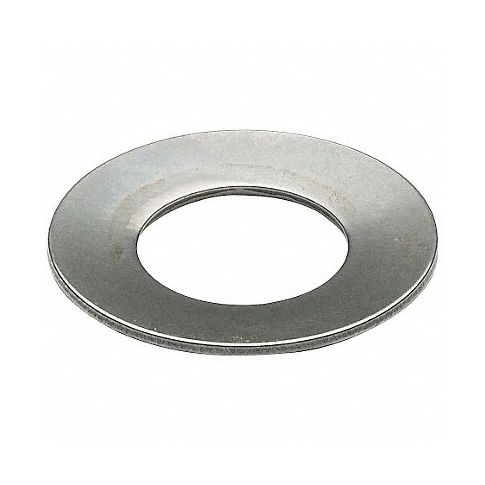

Disc Spring 1.313 Chrome Belleville PK10 MPN:B4000437
Disc springs, also known as Belleville or cup springs, offer versatile support with high load capacity in axial loading applications across multiple industries like aerospace, construction, and automotive sectors amongst others where durability is vital due to dynamic forces present. The 1.313 thickness and PK10 designation indicate their dimensions offering space-saving designs capable of withstanding significant amounts of pressure without deforming or collapsing during use; their metallic construction contributes to heat resistance ensuring long-lasting performance even under extreme conditions. The disc spring's flat top provides precise control over deflection, while its conical shape allows uniform distribution of stress; a combination making it suitable for mounting between flanges, bearings or other hardware enhancing the load support capability without sacrificing stability in compact designs. Manufactured from chromium-plated carbon steel enhances corrosion resistance ensuring durability & longevity delivering reliability as an all-purpose solution engineered to excel under the toughest conditions making them suitable for diverse engineering applications across various industries where dependable results are sought after.
Technical Specifications
- Item Disc Spring
- Type Belleville Spring Washer
- Material Chrome
- Finish Plain
- Min. Inside Dia. 1.313 in
- Max. Outside Dia. 4.0 in
- Thickness 0.437 in
- Overall Height 0.477 in
- For Hole Size 4
- For Rod Size 1.313
- Load @ Deflection (Lbs.) 24621
- Deflection @ Load 0.032 in
- Calculated Load @ Flat (Lbs.) 35595
Manufacturer Details
- Manufacturer: Spec
- Condensed Mfg Number: B4000437
- MPN: B4000437
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318210090
- GDS Category Name: Disc Springs
- GDS Family Name: Springs
- GDS Segment Name: Hardware
- UNSPSC: 31161906
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Springs
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Disk springs
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
