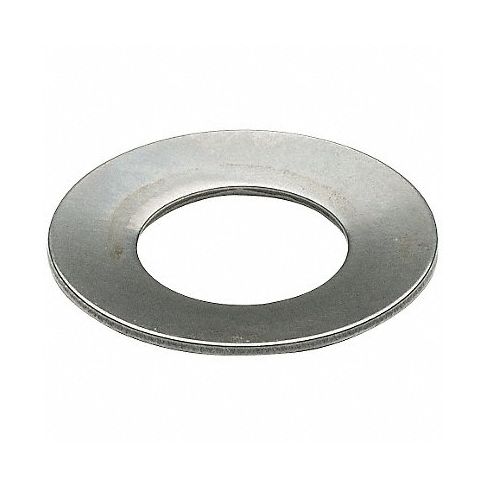

Disc Spring 1.063 Chrome Belleville PK10 MPN:B3500219
Disc Spring 1.063 Chrome Belleville PK10
Disc Spring 1.063 Chrome Belleville PK10 is a high-quality disc spring made from chrome-plated, heat-treated spring steel. This disc spring offers high resistance to stress in a compact design making it ideal for various applications requiring a tight space but high load capacity. It provides a deflected height of 0.83, an overall height of 1.625, and can withstand forces up to 743 lbs. Disc Spring 1.063 Chrome Belleville PK10 is commonly used in industries such as machinery, equipment, automotive, aerospace, electronics, and consumer goods where tension or compression forces need to be absorbed.
Shop and save on Spec item #B3500219 from a huge selection of Springs brought to you by the largest Veteran owned and operated online store in the US 🛒.
Technical Specifications
- Item Disc Spring
- Type Belleville Spring Washer
- Material Chrome
- Finish Plain
- Min. Inside Dia. 1.063 in
- Max. Outside Dia. 3.5 in
- Thickness 0.219 in
- Overall Height 0.281 in
- For Hole Size 3.5
- For Rod Size 1.063
- Load @ Deflection (Lbs.) 6463
- Deflection @ Load 0.05 in
- Calculated Load @ Flat (Lbs.) 9362
Manufacturer Details
- Manufacturer: Spec
- Condensed Mfg Number: B3500219
- MPN: B3500219
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318210090
- GDS Category Name: Disc Springs
- GDS Family Name: Springs
- GDS Segment Name: Hardware
- UNSPSC: 31161906
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Springs
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Disk springs
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
Category: Springs
