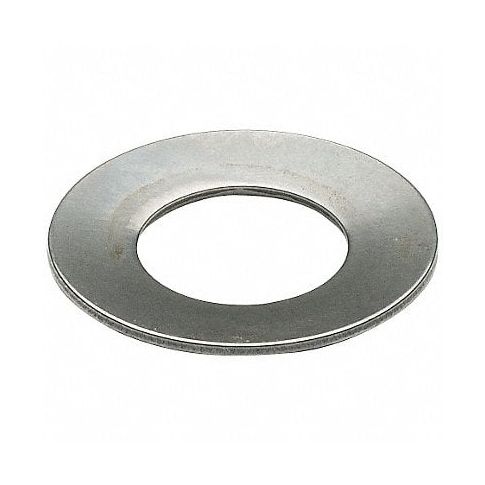

Disc Spring 1.25 Steel Belleville PK10 MPN:B2500080
Introducing our superior quality Disc Spring Belleville Washer in Carbon Steel, specifically designed to cater to various industrial applications. With a size range of 1.25 inches for maximum customization, this heavy-duty washer is crafted from top-grade steel material, providing superior strength and durability to handle demanding load requirements. Ideal for use in diverse sectors such as automotive, construction, agricultural, aerospace, and engineering industries, this product ensures optimal performance, safety, and reliability. Disc Spring Belleville Washer is designed to minimize wobbling and vibration, delivering efficient load distribution, enhancing the life of your machinery or equipment, and preventing downtime in critical applications.
Top product features:
- Carbon Steel Construction Enhancing Durability and Strength
- 1.25 Inch Minimum Inside Dia. Customizable Fit and Compatibility
- Available in Plain Finish Versatile Applications and Compliance
Top product applications:
- Automotive Improving Shock Absorption and Dampening in Suspension Systems
- Construction Enhancing Stability and Support in Machinery and Equipment
- Agricultural Regulating Fluid Flow in Irrigation and Hydraulic Systems
Technical Specifications
- Item Disc Spring
- Type Belleville Spring Washer
- Material Carbon Steel
- Finish Plain
- Min. Inside Dia. 1.25 in
- Max. Outside Dia. 2.5 in
- Thickness 0.08 in
- Overall Height 0.16 in
- For Hole Size 2.5
- For Rod Size 1.25
- Load @ Deflection (Lbs.) 870
- Deflection @ Load 0.04 in
- Calculated Load @ Flat (Lbs.) 1260
Manufacturer Details
- Manufacturer: Spec
- Condensed Mfg Number: B2500080
- MPN: B2500080
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318210090
- GDS Category Name: Disc Springs
- GDS Family Name: Springs
- GDS Segment Name: Hardware
- UNSPSC: 31161906
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Springs
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Disk springs
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
