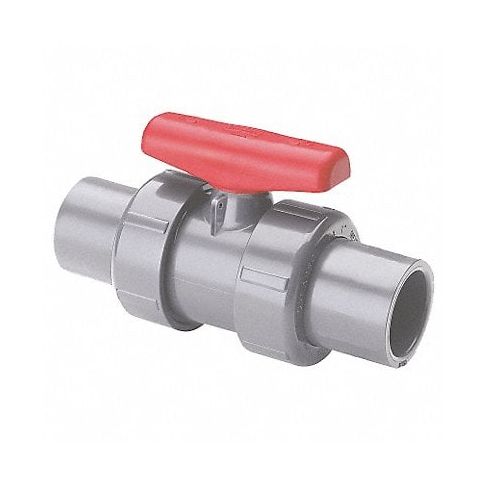

Retrofit Ball Valve CPVC 1/2 FKM MPN:3632R-005C
The Retrofit Ball Valve is a versatile valve that can be installed easily on preexisting piping systems without major modifications to the pipe thread dimensions. Made from CPVC (Chlorinated Polyvinyl Chloride) with FKM O-Rings, the ball valve provides exceptional strength and durability for use in corrosive environments while maintaining leak resistance at extreme temperatures ranging from -40F up to 195F. Due to its compatibility with various pipe materials, such as metal or plastic pipes, this ball valve can serve multiple applications such as water, oil, chemical handling or other media transmission. It's popular among industrial plants and facilities needing safe control of flow and shut-off capabilities while retrofitting existing infrastructures in maintenance projects without disrupting normal operations.
Technical Specifications
- Item Ball Valve
- Body Material CPVC
- Body Style Inline
- General Connection Type Socket
- Valve Structure 3-Piece
- Pipe Size 1/2 in
- Connection Type Socket x Socket
- Port Standard
- Max. Pressure 235 psi CWP
- Temp. Range 32 Degrees to 190 Degrees F
- Ball Material PVC
- Seat Material FKM
- Stem Type Safe-T-Shear(R)
- Handle Type Tee
- Handle Material Polypropylene
- Stem Material PVC
- Body Seal Material FKM
- Features 3-Slot
- Ball Valve Product Group Manual
- Valve Basic Body Material Plastic
- Standards ASTM F 1970
Manufacturer Details
- Manufacturer: Spears
- Condensed Mfg Number: 3632R005C
- MPN: 3632R-005C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Ball Valves
- GDS Family Name: Shut-Off Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Ball valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
