D7964 Compound Gauge 1 Bar Vac to 5 Bar 2-1/2 MPN:LFS-210-(1/0/5 BAR)-G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5NMZ6
D7964 Compound Gauge 1 Bar Vac to 5 Bar 2-1/2

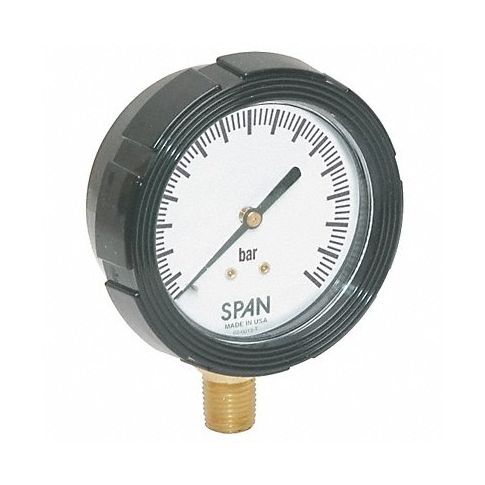

The D7964 compound gauge is an efficient and versatile solution for measuring pressure from vacuum up to 5 bar in industrial settings. Made of a robust aluminum construction with a steel case, this gauge has a 2-1/2 diameter dial face with a direct reading scale for accurate measurements. Equipped with 0-450mm and 40-800mm Hg vacuum scales along with 2.5 bar, 5 bar, 7 bar, 10 bar and 16 bar gauges, this gauge offers precision and reliability in pressure measurement for industries such as aerospace, automotive, marine and general engineering.
This compound gauge features plastic case construction to resist corrosion in demanding environments.
Technical Specifications
- Item Compound Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Copper
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units Bar/Bar
- Gauge Primary Range Values -1 to 0 to 5
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 0.1
- Gauge Case Material Zytel Nylon
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass Alloy
- Basic Gauge Sensor Material Copper
- Gauge Sensor Material Copper Alloy
- Gauge Lens Material Polycarbonate
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Calibration Certificate Included No
- Series LFS-210-BAR
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS210105BARG
- MPN: LFS-210-(1/0/5 BAR)-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:47am UTC
Category: Pressure and Vacuum Measuring
