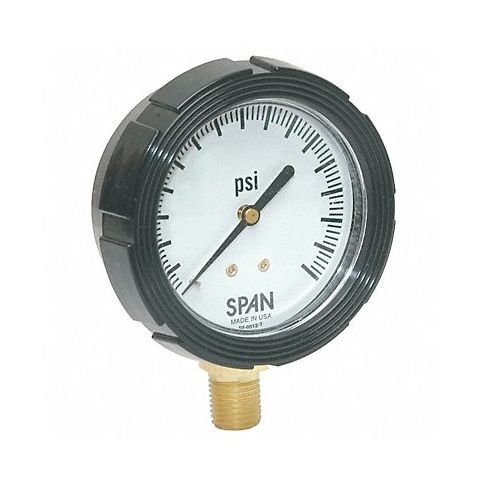

D7962 Compound Gauge 30 Hg to 300 psi 2-1/2In MPN:LFS-210-30Hg/300PSI-G-CERT
Free Shipping
In Stock
The D7962 Compound Gauge exhibits exceptional performance for industrial applications demanding precise measuring results by ensuring accuracy and repeatability. Capable of displaying pressure readings ranging from a minimum of 30 Hg (hogsheads) to the maximum limit of 300 psi, this versatile gauge can be applied across industries for testing vacuum conditions, regulating air compressors' pressure or analyzing system flow in industrial setups. With its large face scale of two-inch range that ensures easy reading from a distance, this tool is perfect for operators requiring precision when checking critical pressures for production processes. The durable build made by materials such as stainless steel and chrome plating offers resilience against impacts or corrosion caused during use.
Technical Specifications
- Item Compound Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Copper
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units in Hg/psi
- Gauge Primary Range Values -30 to 0 to 300
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 15/10
- Gauge Case Material Zytel Nylon
- Gauge Primary Range Numbered Graduations 30/50
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass Alloy
- Basic Gauge Sensor Material Copper
- Gauge Sensor Material Copper Alloy
- Gauge Lens Material Polycarbonate
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Calibration Certificate Included Yes, NIST with Data
- Series LFS-210
- Includes Pulsation Restrictor
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS21030Hg300PSIGCERT
- MPN: LFS-210-30Hg/300PSI-G-CERT
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
