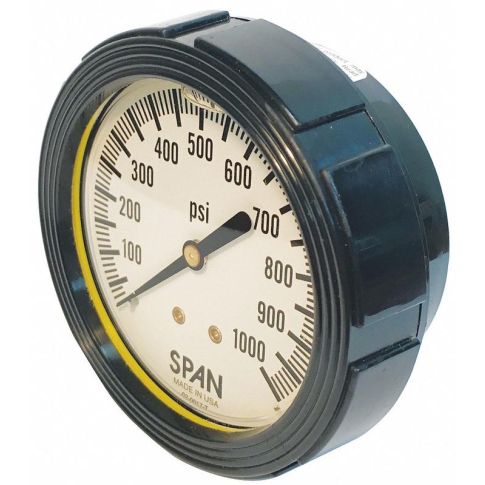

Pressure Gauge 3-1/2 Dial Size MPN:LFC-220-1000-G
The Pressure Gauge comes with a 3-1/2 inch dial size, making it suitable for industrial and commercial purposes, where precise measurements of pressure levels need to be taken regularly. Made from durable materials like steel or brass, the gauge is built to withstand rugged conditions and harsh environments found in industries. It has Bourdon tube technology which senses changes in pressure accurately through a pressure sensitive element that deforms when pressure changes occur. The diaphragm design can also be used, suitable for gases and liquids with corrosive nature. Its range of accuracy varies depending on the model selected - from vacuum applications to 5000 psi or more depending on industry needs. Overall, this gauge offers an ideal solution in numerous sectors such as HVAC equipment's monitoring system; chemical and refining industries where precise measurements play vital role in maintaining efficiency of processes and preventing damages caused by pressure related incidents.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 1000
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 10
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Gauge Mounting Method Surface
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 100
- Gauge Case Material Fiber Reinforced Nylon
- Gauge Primary Range Numbered Graduations 100
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Plastic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -20 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Characteristics With Brass Internals
- For Use With Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy
- Calibration Certificate Included No
- Series LFC
- Includes Vent Plug
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFC2201000G
- MPN: LFC-220-1000-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
