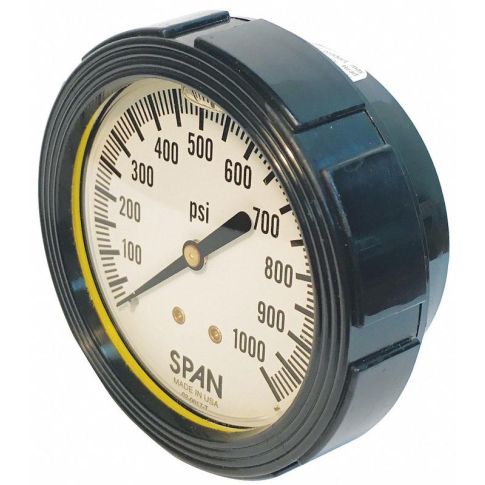

Pressure Gauge 3-1/2 Dial Size MPN:LFC-220-600-G
The pressure gauge offers a 3-1/2-inch dial for easy reading with an accuracy of +/-0.5% full scale ensuring precise pressure measurements in laboratory or industrial settings. It includes a built-in bleed adjustment screw to help maintain accuracy and an automatic self-filling feature that eliminates the need for manual recalibration, saving time during operation. With a stainless steel case and acrylic lens, this gauge can withstand tough environments and is corrosion-resistant ensuring consistent performance over time. It's ideal for monitoring pressure in systems such as pneumatic controls, HVAC systems, fluid mechanics experiments or process control applications across various industries such as manufacturing, oil & gas, chemical and more where accurate readings are crucial to efficient operations.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 600
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 10
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Gauge Mounting Method Surface
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 50
- Gauge Case Material Fiber Reinforced Nylon
- Gauge Primary Range Numbered Graduations 50
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Plastic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -20 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Characteristics With Brass Internals
- For Use With Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy
- Calibration Certificate Included No
- Series LFC
- Includes Vent Plug
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFC220600G
- MPN: LFC-220-600-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
