Pressure Gauge 3-1/2 Dial Size MPN:LFC-220-60-G

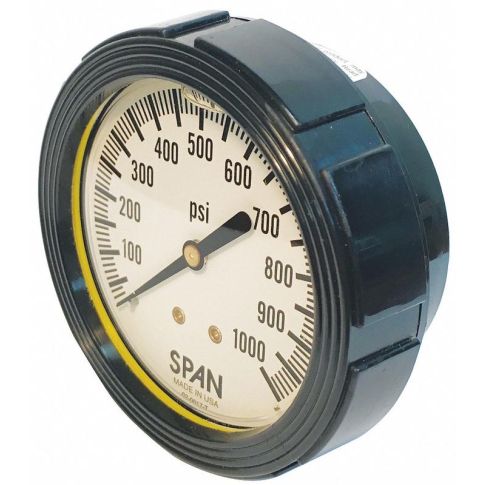

Pressure Gauge 3-1/2 Dial Size
The Pressure Gauge 3-1/2 Dial Size is a versatile instrument designed for measuring pressure levels in various applications such as hydraulics, pneumatics, and plumbing systems. Its large 3-1/2 dial provides clear readings with ease, while its durable construction ensures accurate and consistent measurements over time. The gauge's compact size allows for easy installation in tight spaces without compromising performance or accuracy. With its versatility and precision, the Pressure Gauge is ideal for professionals and enthusiasts working in industries such as automotive, manufacturing, and construction.
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 60
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 10
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Gauge Mounting Method Surface
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 10
- Gauge Case Material Fiber Reinforced Nylon
- Gauge Primary Range Numbered Graduations 10
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Plastic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -20 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Characteristics With Brass Internals
- For Use With Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy
- Calibration Certificate Included No
- Series LFC
- Includes Vent Plug
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFC22060G
- MPN: LFC-220-60-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC
Category: Pressure and Vacuum Measuring
