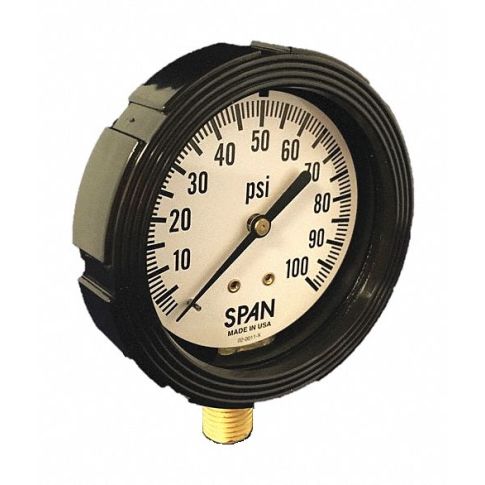

Pressure Gauge 3-1/2 Dial Size MPN:LFS-224-2000-G
Pressure Gauge 3-1/2 Dial Size
This Pressure Gauge offers a dial size of 3-1/2 inches, suitable for accurate measurements in hydraulic or pneumatic systems. Its easy to read numbers and calibration markings make it an ideal choice for the maintenance personnel monitoring pressures, technicians repairing leaky connections and mechanics testing their assemblies. Offered at a cost-effective price point without sacrificing its quality this gauge is compatible with numerous applications across various industries making it the top preference among users seeking dependable pressure measurements.
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 2000
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 10
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Gauge Mounting Method Surface
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 200
- Gauge Case Material Fiber Reinforced Nylon
- Gauge Primary Range Numbered Graduations 200
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Plastic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -20 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Characteristics With Brass Internals
- For Use With Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy
- Calibration Certificate Included No
- Series LFS
- Includes Vent Plug
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS2242000G
- MPN: LFS-224-2000-G
