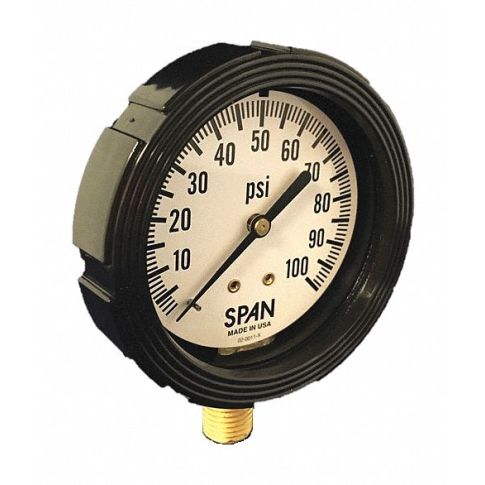

Pressure Gauge 3-1/2 Dial Size MPN:LFS-220-400-G
The Pressure Gauge offers numerous benefits such as its ease of reading which makes it suitable for both indoor & outdoor applications; it comes equipped with high-quality materials that make it durable while ensuring accuracy and consistency in measurements regardless of the weather conditions. Its compact design allows for easy installation on various surfaces ensuring it occupies little space while providing reliable results every time you use it. This gauge features robust construction that makes it ideal for industrial applications that demand accurate readings in pressure levels ranging from vacuum to high pressures up to 400psi thereby delivering value for money, time & energy invested in purchasing this product. With the ability to measure pressure changes instantly upon fluctuation or spikes while displaying reading consistently on its dial face, this Pressure Gauge remains a top choice among professional mechanics or users that demand precision at their fingertips for accurate diagnosis, maintenance & troubleshooting issues concerning pressurized systems.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 400
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 10
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Gauge Mounting Method Surface
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 50
- Gauge Case Material Fiber Reinforced Nylon
- Gauge Primary Range Numbered Graduations 50
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Plastic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -20 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Characteristics With Brass Internals
- For Use With Non Explosive Gas or Liquid That Do Not Crystalize and Corrode Copper Alloy
- Calibration Certificate Included No
- Series LFS
- Includes Vent Plug
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS220400G
- MPN: LFS-220-400-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
