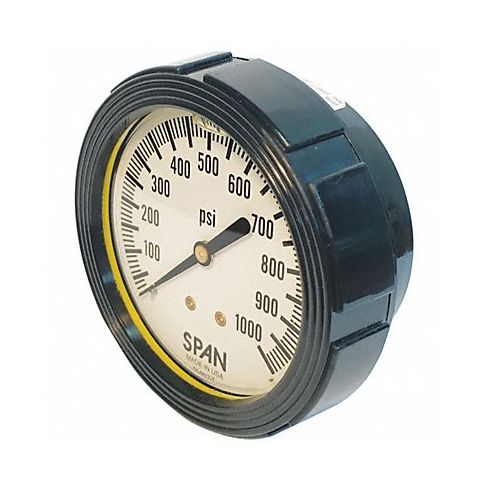

Pressure Gauge 2-1/2 Dial Size MNPT MPN:LFC-220-1000-G
Pressure Gauge 2-1/2 Dial Size MNPT
Manufactured to ISO standards, this pressure gauge features an accuracy of 1% full scale, ensuring you get accurate readings for all your pressure measurement needs. The versatile gauge's dual scale ranges from -40F to 300F and 670 kPa (100 psig) to 16 MPa (2000 psig), making it suitable for various industries such as HVAC/R, chemical processing, mechanical engineering, oil & gas, amongst many others. Featuring a stainless steel case and ABS cover for durability and robustness, this 2-1/2 dial size gauge is ideal for harsh working environments with its corrosion-resistant design. Invest in our Pressure Gauge today, and enhance your operations with top-notch accuracy in pressure measurements!
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 1000
- Gauge Accuracy +/-3-2-3%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 10
- Gauge Case Material ABS Plastic
- Gauge Primary Range Numbered Graduations 100
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Acrylic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Required Gauge Adapter 1 yr
- Characteristics With Brass Internals
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series LFC-220
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFC2201000G
- MPN: LFC-220-1000-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Pressure and Vacuum Measuring
