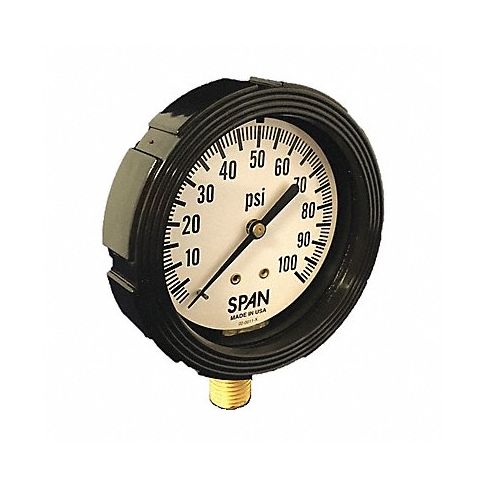

Pressure Gauge 2-1/2 Dial Size MNPT MPN:LFS-220-1000-G
Pressure Gauge 2-1/2 Dial Size MNPT
Engineered with precision to meet your specific pressure measuring requirements in both high and low pressures ranges, our Pressure Gauge (2-1/2 Dial Size, MNPT) delivers consistent, accurate readings every time - even under challenging conditions. Equipped with a reliable bourdon tube mechanism, it features an easy-to-read dual scale for maximum versatility and its durable construction ensures years of trouble-free service across diverse industries such as HVAC/R, chemical processing, mechanical engineering, oil & gas and more! Upgrade your workshop or plant floor with this essential tool and experience the difference quality makes in precision measurements.
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 1000
- Gauge Accuracy +/-3-2-3%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 10
- Gauge Case Material ABS Plastic
- Gauge Primary Range Numbered Graduations 100
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Acrylic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Required Gauge Adapter 1 yr
- Characteristics With Brass Internals
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series LFS-220
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS2201000G
- MPN: LFS-220-1000-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Pressure and Vacuum Measuring
