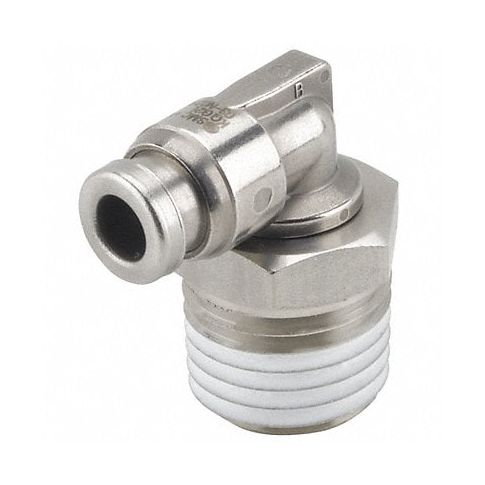

90 Elbow Thread 1/4 In Tube 5/16or5/16 MPN:KQG2L08-02S
SKU
226-CXO-19F753
90 Elbow Thread 1/4 In Tube 5/16or5/16
The 90-degree elbow tube fitting provides a durable and versatile connection between tubing sections in hydraulic or pneumatic systems, providing tight, leak-free seals for smooth operation. Available in a size of 1/4 thread on one end with a 5/16 OD on the other, it easily attaches to standard tubing sizes and fittings without the need for special tools or equipment. With its compact design, it fits easily into confined spaces and reduces material wastage, making it ideal for use in manufacturing, agriculture, automotive, marine and aerospace industries among others.
316 Stainless Steel Push-To-Connect Fittings • Max. pressure: 435 psi Temp. range: 23° to 302°FFittings are lightweight, compact, and suitable for use in washdown or caustic environments that require 316 stainless steel. FKM seals. Compatible with FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin tubing. Grease-free fittings.RoHS compliant.
Technical Specifications
- Item Male Elbow, 90 Degrees
- Tube Fitting Material 316 Stainless Steel
- Fitting Connection Type Tube x R(PT)
- Pipe Size - Pipe Fitting 1/4 in
- Tube Size 5/16 in
- Max. Pressure 435 psi
- Temp. Range 23 Degrees to 302 Degrees F
- Hex Size 14 mm
- Standards RoHS
Manufacturer Details
- Manufacturer: SMC
- Condensed Mfg Number: KQG2L0802S
- MPN: KQG2L08-02S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307290090
- GDS Category Name: Push-Fit Couplings Adapters Unions and Elbows
- GDS Family Name: Tube Fittings
- GDS Segment Name: Plumbing
- UNSPSC: 40142604
- UNSPSC Class ID: 26
- UNSPSC Commodity Name: Tube fittings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Tube elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
Category: Tube Fittings
