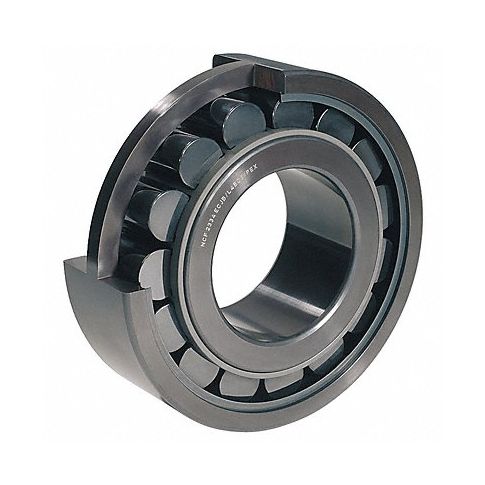

Cylindrical Roller Brg 214 70 mm Bore MPN:NU 214 ECP/C3
SKU
226-CXO-49T730
Cylindrical Roller Brg 214 70 mm Bore
SKF's Cylindrical Roller Bearing 214 with a 70 mm bore is a versatile and durable bearing designed for demanding industrial applications. The open design provides an extra-wide contact angle that can accommodate misalignment and carry large radial loads, making it ideal for use in various machinery, including agricultural equipment and construction vehicles. The cylindrical shape enables easy mounting while reducing friction to increase overall efficiency. By purchasing this product from our Veteran-owned business, you not only get free shipping but also support those who have served our country. Get yours today!
Top product features:
- Extra-wide contact angle for misalignment and large radial load accommodation
- Cylindrical shape for easy mounting and reduced friction
- Versatility for a range of industrial applications
Top product applications:
- Agriculture equipment (e.g., combines, harvesters) for high-load scenarios
- Construction vehicles and machinery (e.g., excavators, cranes)
- Industrial machines requiring radial or combined loads support and high precision motion
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including SKF item #NU 214 ECP/C3.
Technical Specifications
- Item Cylindrical Roller Bearing
- Type Open
- Bore Dia. 70 mm
- Tolerance +0/-.015mm
- Outside Dia. 125
- Outside Dia. Tolerance +0/-.018mm
- Width 24 mm
- Fillet Radii (In.) 0.0591 in
- Fillet Radii (mm) 1.5 mm
- Outer Ring Inside Dia. (In.) 4.2913 in
- Outer Ring Inside Dia. (mm) 109 mm
- Inner Ring Outside Dia. (In.) 3.52 in
- Inner Ring Outside Dia. (mm) 89.4 mm
- Shoulder Height (In.) 4.5669 in
- Shoulder Height (mm) 116 mm
- Dynamic Load Capacity (Lb.) 30,800 lb
- Static Load Capacity (Lb.) 30,800 lb
- Temp. Range (F) -40 Degrees to 205 Degrees F
- Cage Material Polyamide
- Roller Material Steel
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: NU214ECPC3
- MPN: NU 214 ECP/C3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482500000
- GDS Category Name: Cylindrical Roller Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Roller bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
