Self-Aligning Ball Brg 2209 45mm Bore MPN:2209 EKTN9/C3
SKU
226-CXO-36MD75

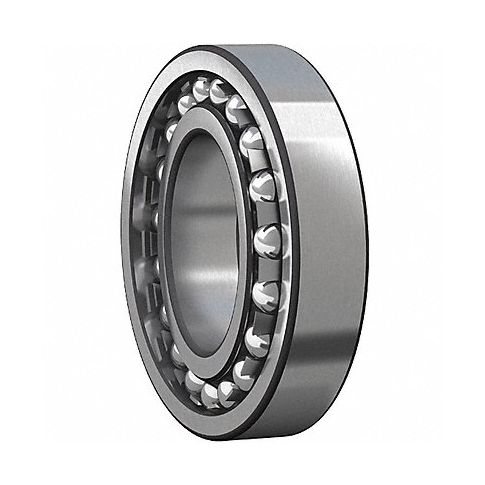

Self-Aligning Ball Brg 2209 45mm Bore
Introducing the Skf Self-Aligning Ball Brg 2209 45mm Bore, a double row radial ball bearing designed for maximum load capacity and precise alignment in demanding applications. With its open seal type, this bearing ensures easy maintenance while protecting against contaminants. Its versatile applications make it an ideal choice for various industries including construction, manufacturing, and transportation. Boasting a 45 mm bore diameter and +0/-.012mm bore tolerance, the Self-Aligning Ball Brg provides enhanced accuracy and stability even under heavy loads. Upgrade your power transmission system with this top-performing bearing from Skf today!
Top product features:
- Double row alignment for increased load capacity
- Bore diameter of 45 mm for enhanced stability
- Open seal type for easy maintenance
Top product applications:
- Industrial equipment and machinery for heavy-duty applications
- Mining and construction vehicles and equipment
- Robotics and automation systems requiring precision alignment
This radial ball bearing features double-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Double Row
- Seal/Shield Type Open
- Bore Dia. 45 mm
- Bore Tolerance +0/-.012mm
- Outside Dia. 85 mm
- Outside Dia. Tolerance +0/-.015mm
- Width 23 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 7,310 lb
- Static Load Capacity 2,380 lb
- Max. Load Axial 698 lb
- Max. RPM 10,000 RPM
- Temp. Range -40 Degrees to 210 Degrees F
- Bearing Material Steel
- Cage Material PA66
- Lubrication Shell Alvania Grease
- Industry Number 2209-EKTN9/C3
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 2209EKTN9C3
- MPN: 2209 EKTN9/C3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Self-Aligning Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
