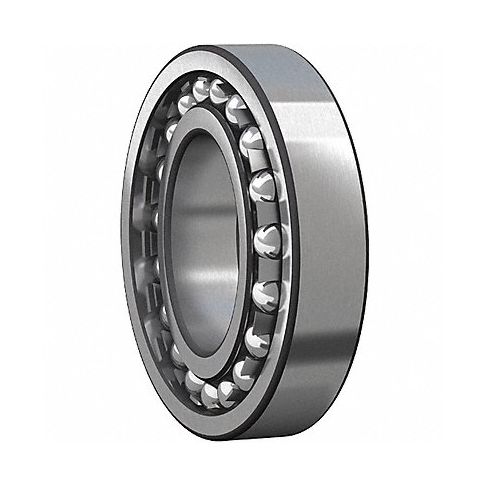

Self-Aligning Ball Brg 2205 25mm Bore MPN:2205 ETN9
SKF's Self-Aligning Ball Bearings are designed to provide exceptional performance in various industries. With a double-row alignment, these bearings offer high radial and axial load capacities. The unmounted bearing item allows for easy installation and maintenance while the double row design enhances its ability to withstand heavy loads. These bearings also have an open seal/shield type that makes them suitable for various applications requiring minimal contact. Their 25mm bore size ensures precise movement control in power transmission systems, making them ideal for use in automotive and heavy-duty equipment. The +0/-010mm bore tolerance further adds to their accuracy and durability, ensuring long-lasting performance. If you're looking for a reliable bearing solution that provides precise movement control and can withstand heavy loads, SKF's Self-Aligning Ball Bearings are the ideal choice.
Top product features:
- Double-row alignment for high radial and axial load capacities.
- Open seal/shield type suitable for various applications requiring minimal contact.
- +0/-010mm bore tolerance ensures long-lasting performance and accuracy.
Top product applications:
- Power transmission systems in automotive and heavy-duty equipment that require precise movement control under high loads.
- Applications requiring minimal contact between bearings and surroundings, such as in aerospace or medical devices.
- Machinery that requires durable, high-load capacity bearings for extended periods of use.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Double Row
- Seal/Shield Type Open
- Bore Dia. 25 mm
- Bore Tolerance +0/-.010mm
- Outside Dia. 52 mm
- Outside Dia. Tolerance +0/-.013mm
- Width 18 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 3,780 lb
- Static Load Capacity 990 lb
- Max. Load Axial 303 lb
- Max. RPM 18,000 RPM
- Temp. Range -40 Degrees to 210 Degrees F
- Bearing Material Steel
- Cage Material PA66
- Lubrication Shell Alvania Grease
- Industry Number 2205-ETN9
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 2205ETN9
- MPN: 2205 ETN9
