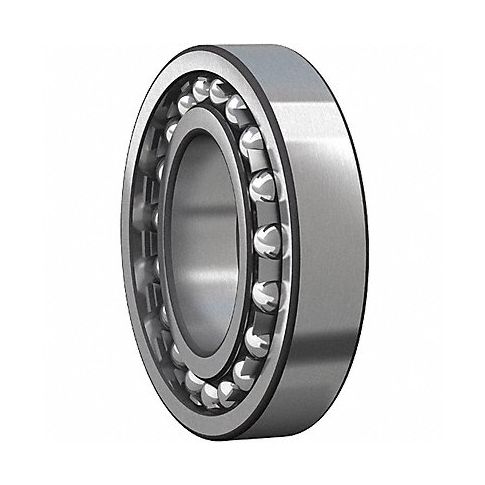

Self-Aligning Ball Brg 1206 30mm Bore MPN:1206 EKTN9/C3
Introducing the Self-Aligning Ball Brg 1206 30mm Bore from Skf - the perfect solution for precise guidance in heavy-duty applications. This radial ball bearing features double-row alignment for enhanced stability and strength. The self-aligning design allows for misalignment up to 2.5 degrees, ensuring that the bearing can maintain its functionality even in less than optimal conditions. Its large bore diameter of 30mm makes it suitable for a wide range of applications, including agriculture, construction, and manufacturing machinery. Additionally, the open seal design enables easy cleaning and maintenance, prolonging the life of the bearings. Choose Skf's Self-Aligning Ball Brg 1206 30mm Bore for superior performance and reliability in your next project.
Top product features:
- Double-row alignment for enhanced stability and strength
- Self-aligning design to maintain functionality in less than optimal conditions
- Large bore diameter of 30mm suitable for a wide range of applications
Top product applications:
- Heavy-duty machines that require precise guidance
- Industrial equipment where misalignment is not acceptable
- Agricultural machinery for precise movement and positioning
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Double Row
- Seal/Shield Type Open
- Bore Dia. 30 mm
- Bore Tolerance +0/-.010mm
- Outside Dia. 62 mm
- Outside Dia. Tolerance +0/-.013mm
- Width 16 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 3,510 lb
- Static Load Capacity 1,050 lb
- Max. Load Axial 323 lb
- Max. RPM 15,000 RPM
- Temp. Range -40 Degrees to 210 Degrees F
- Bearing Material Steel
- Cage Material PA66
- Lubrication Shell Alvania Grease
- Industry Number 1206-EKTN9/C3
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 1206EKTN9C3
- MPN: 1206 EKTN9/C3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Self-Aligning Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:00pm UTC Category: Bearings
