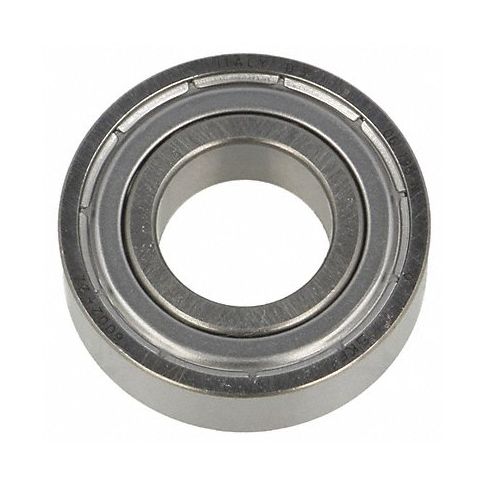

Rad Ball Brg 6020 100mm Bore Alloy Stl MPN:6020 2Z/C3
Introducing our high-quality Radial Ball Bearings, designed for smooth power transmission in various industrial applications. With a bore diameter of 100 mm, these bearings provide exceptional support and reduced friction for long-lasting performance. Made with premium materials, they offer improved resistance to wear and corrosion, ensuring superior durability. Ideal for use in agricultural machinery, material handling equipment, and other demanding industries, our radial ball bearings provide a cost-effective solution to enhance the efficiency of your operations. Choose from single-row alignment for enhanced stability and precision, or double-row configurations for increased load capacity. Backed by our industry-leading customer support, you can trust that our radial ball bearings will meet your needs and exceed your expectations. Upgrade your equipment today with the superior performance of our Radial Ball Bearing 6020!
Top product features:
- Double Shielded Seal/Shield Type
- Premium Materials
- Exceptional Bore Dia. of 100 mm
Top product applications:
- Agricultural machinery
- Material handling equipment
- Demanding industries
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 100 mm
- Bore Tolerance +0/-.020mm
- Outside Dia. 150 mm
- Outside Dia. Tolerance +0/-.018mm
- Width 24 mm
- Shield Material Stamped Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 14,320 lb
- Static Load Capacity 12,140 lb
- Max. Load Axial 6,070 lb
- Max. RPM 5,600 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT33 Grease
- Industry Number 6020-2Z/C3
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 60202ZC3
- MPN: 6020 2Z/C3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
