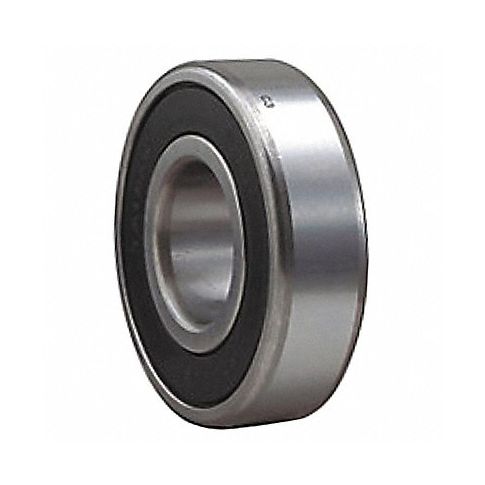

Radial Ball Brg 6016 80mm Bore Alloy Stl MPN:6016 2RS JEM
The Radial Ball Brg 6016 80mm Bore Alloy Stl from Skf is an excellent choice for precision machinery that requires accurate movement and precise positioning. This single-row bearing has a double sealed structure which makes it perfect for environments with dust, dirt, or moisture. With its versatile 80mm bore diameter and lightweight design, this product is suitable for use in various applications such as automotive steering systems, gears, construction machines, and industrial devices that require sturdy parts to ensure durability and reliability. The Radial Ball Brg 6016 80mm Bore Alloy Stl delivers high-performance precision movements with minimal maintenance, ensuring the highest level of operational efficiency in all types of machinery.
Top product features:
- Double sealed structure ensures protection from dust, dirt, and moisture.
- Lightweight design reduces weight for easier movement and maneuverability.
- Versatile bore diameter allows for use in various applications with different machines.
Top product applications:
- Automotive steering systems provides precise movement and accuracy for smooth handling.
- Gears delivers high rigidity for stable transmission of rotational motion.
- Construction machines ensures durability in harsh environments with resistant to wear.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 80 mm
- Bore Tolerance +0/-.015mm
- Outside Dia. 125 mm
- Outside Dia. Tolerance +0/-.018mm
- Width 22 mm
- Seal Material Synthetic Rubber
- ABEC Tolerance 1
- Dynamic Load Capacity 11,110 lb
- Static Load Capacity 8,990 lb
- Max. Load Axial 4,495 lb
- Max. RPM 3,200 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication GJN Grease
- Industry Number 6016-2RSJEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 60162RSJEM
- MPN: 6016 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:00pm UTC Category: Bearings
