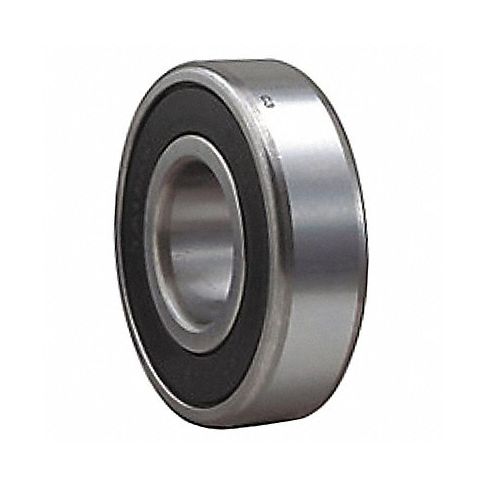

Radial Ball Brg 6014 70mm Bore Alloy Stl MPN:6014 2RS JEM
Introducing the SKF Radial Ball Bearing 6014 70mm Bore Alloy Stl - the ultimate solution for all your power transmission needs. This single-row radial ball bearing features double sealing, ensuring durability and long-lasting performance in even the toughest industrial environments. With a bore diameter of 70 mm and a tolerance of +0/-.015mm, this bearing provides exceptional precision and accuracy. The Double Sealed design protects against dust, moisture, and contaminants, providing you with trouble-free operation for extended periods. Ideal for use in motors, gears, and pumps, this versatile radial ball bearing delivers smooth, reliable performance and has a capacity of 26.345 kN radial load at 7985 rpm and 1280 N axial load at 7985 rpm. Experience the difference SKF can make - choose the Radial Ball Bearing 6014 70mm Bore Alloy Stl for your power transmission applications today!
Top product features:
- Double Sealed design provides long-lasting performance in harsh environments
- Bore tolerance of +0/-.015mm ensures precision and accuracy
- Versatility for use in motors, gears, and pumps meets multiple application needs
Top product applications:
- High-load bearing capacity in motors
- Stable operation under harsh conditions in gears
- Durable and precise movement for pumps
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 70 mm
- Bore Tolerance +0/-.015mm
- Outside Dia. 110 mm
- Outside Dia. Tolerance +0/-.015mm
- Width 20 mm
- Seal Material Synthetic Rubber
- ABEC Tolerance 1
- Dynamic Load Capacity 8,920 lb
- Static Load Capacity 6,970 lb
- Max. Load Axial 3,485 lb
- Max. RPM 3,600 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication GJN Grease
- Industry Number 6014-2RSJEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 60142RSJEM
- MPN: 6014 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
