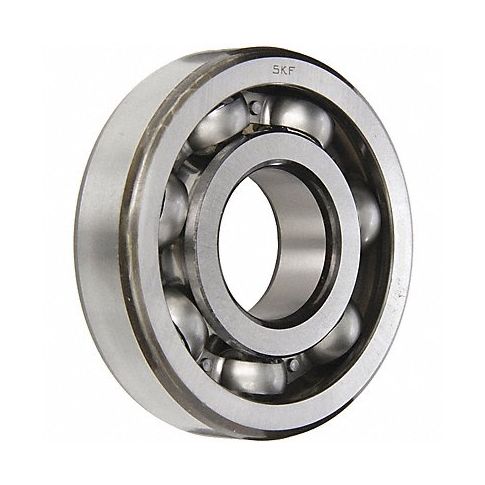

Radial Ball Brg 6003 17mm Bore Alloy Stl MPN:6003 JEM
Introducing the Radial Ball Brg 6003 17mm Bore Alloy Stl from Skf - a premium-quality radial ball bearing designed for reliable performance in power transmission systems. This single-row bearing is unmounted and available in alloy steel material, ensuring durability and resistance to wear and tear. Its bore diameter of 17 mm offers excellent load distribution capabilities, while its open design simplifies maintenance and reduces operational costs. With applications in a wide range of industries including machine tools, agriculture, transportation, and textile machinery, this bearing delivers unmatched precision and efficiency to improve the performance of your power transmission systems. Experience the difference with Skf Radial Ball Bearing 6003 17mm Bore today!
Top product features:
- Unmounted radial ball bearing: Enables easy installation and adjustment in power transmission systems.
- Single row alignment: Ensures precise and efficient load distribution, reducing operational friction and noise.
- Alloy steel material: Provides durability, resistance to wear and tear, and high load capacity for heavy-duty applications.
Top product applications:
- Agriculture and Forestry Machinery: Used in combine harvesters, sugar cane harvesters, forage harvesters, and other agricultural machinery for precise loading and unloading of material.
- Machine Tool Industry: Employed in milling machines, boring machines, drilling machines, grinding machines, and other metalworking equipment to ensure smooth rotary motion and precision.
- Material Handling Equipment: Utilized in conveyors, elevators, hoists, and cranes for moving and lifting loads with minimal friction and energy consumption.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Open
- Bore Dia. 17 mm
- Bore Tolerance +0/-.008mm
- Outside Dia. 35 mm
- Outside Dia. Tolerance +0/-.011mm
- Width 10 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 1,430 lb
- Static Load Capacity 730 lb
- Max. Load Axial 365 lb
- Max. RPM 28,000 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication GJN Grease
- Industry Number 6003-JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 6003JEM
- MPN: 6003 JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:00pm UTC Category: Bearings
