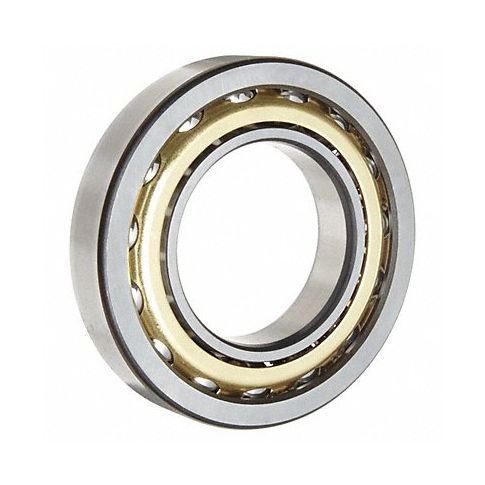

Angular Bearing 7414 40 Deg 70 mm Bore MPN:7414 BGAM

Technical Specifications

• Item Angular Contact Ball Bearing
• Type Single Row Standard
• Contact Angle (Degree) 40
• Bore Dia. 70 mm
• Outside Dia. 180 mm
• Width 42 mm
• Standard Preload (lbs.) 86
• Standard Preload (N) 380
• Max. RPM 4,800 RPM
• Dynamic Load Capacity (Lb.) 35,700
• Dynamic Load Capacity (N) 159,000
• Static Load Capacity (Lb.) 28,500
• Static Load Capacity (N) 127,000
• ABEC Tolerance 3
• Temp. Range (F) -40 Degrees to 212 Degrees
• Cage Material Machined Brass
• Lubrication MT47 Grease

Manufacturer Details

• Manufacturer: SKF
• Condensed Mfg Number: 7414BGAM
• MPN: 7414 BGAM

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482105028
• GDS Category Name: Angular Contact and Precision Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
