Angular Bearing 7304 40 Deg 20 mm Bore MPN:7304 BECBP
SKU
226-CXO-36K720

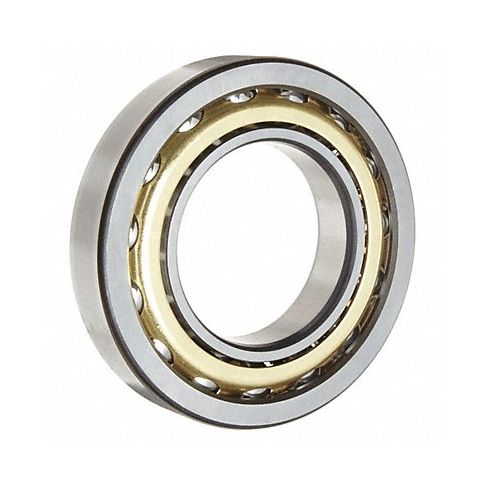

Angular Bearing 7304 40 Deg 20 mm Bore
Looking for an angular contact ball bearing with precision, strength, and reliability? Look no further than the SKF Angular Contact Ball Bearing - 7304 40 Deg 20 mm Bore. With a 40-degree contact angle and single row design, this bearing ensures optimal load distribution and reduced friction for smooth operation in a wide range of applications. Its 20mm bore diameter and 52mm outside diameter make it easily mountable and compatible with various industrial equipment and machinery. Whether you're in the automotive, medical, aerospace or robotics industry, this angular contact ball bearing from SKF offers superior performance and durability to meet your needs.
Top product features:
- High precision ball bearing for accurate movement
- 40-degree contact angle for optimal load distribution and reduced friction
- Compatible with various industrial applications
Top product applications:
- Automotive industry: Use in cars and other vehicles for smooth movement of engine parts, such as crankshafts and camshafts
- Medical equipment: Use in high precision devices like medical scanners and robots to ensure accurate movements
- Aerospace industry: Use in satellites and rockets to maintain smooth operation of moving parts
✓ Buy SKF item #7304 BECBP and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item Angular Contact Ball Bearing
- Type Single Row Explorer
- Contact Angle (Degree) 40
- Bore Dia. 20 mm
- Outside Dia. 52 mm
- Width 15 mm
- Standard Preload (lbs.) 27
- Standard Preload (N) 120
- Max. RPM 18,000 RPM
- Dynamic Load Capacity (Lb.) 4,300
- Dynamic Load Capacity (N) 19,000
- Static Load Capacity (Lb.) 2,340
- Static Load Capacity (N) 10,400
- ABEC Tolerance 3
- Temp. Range (F) -40 Degrees to 212 Degrees
- Cage Material PA66
- Lubrication MT47 Grease
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 7304BECBP
- MPN: 7304 BECBP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105028
- GDS Category Name: Angular Contact and Precision Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on July 19, 2023 11:00am UTC
Category: Bearings
